CAT6 F/UTP Bare Copper Communication Cable, 4-Pair, 1000FT

Get reliable CAT6 F/UTP Bare Copper Communication Cable, 4-Pair, 1000FT from our factory. High quality and durable for all your communication needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Packaging & Shipping
  • Application
  • Certifications
  • Product Line
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
cat6e
Conductor Material
Bare Copper Wire
Sheath Material
PE,PVC,Lsoh
Insulation Material
1.04HDPE
Material Shape
Round Wire
Range of Application
Flame Retardant,Mine,Waterproof,Sun Production
Certification
ISO9001, CE, CCC, RoHS
Brand
Risun Cable
Mode No
Cat5/Cat5e/CAT6/CAT6A/Cat7
Shielede
Unshieleded UTP/Shieleded FTP
Voltage
Below 36V
Length
305m
Spec of Cable
4pari Twisted Solid LAN Cable
Transport Package
305m/Wooden Reel/CTN
Specification
bare copper
Trademark
Risun cable/OEM
Origin
Hangzhou, China(Mainland)
HS Code
8544491100
Production Capacity
20000box/Month

Packaging & Delivery

Package Size
42.00cm * 42.00cm * 22.00cm
Package Gross Weight
12.000kg

Product Description



Product Description



CAT6 U/UTP Bare Copper Communication Cable, 4-Pair,1000ft CPR UL, ETL, CE PVC/LSZH/PE

Risun Cable is specialized in producing UTP Cat5e, UTP Cat6, FTP Cat5e, FTP Cat6, Telephone Cable, Alarm Cable and Coaxial Cables.

1. All of products we offer are top quality and competitive price;
2. If there is no special explanation, all of our Brand are RISUN or OEM;
3. Payment: We accept T/T and L/C;
4. Packing:
1) Packing Lengths: 305m/roll, or other lengths available according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull box
4) Other packing available according to client's request.
5. Any question, please contact us without hesitation. We'll reply as soon as we can.
Construction
Conductor 24AWG(Solid or Strand) CU/CCA/CCS
Insulation HDPE 0.90± 0.06mm
Cores/Pairs 8/4
Sheath 5.20+/-0.1mm PVC (FR,RoHS,UV)/ LSOH / PE
Mechanical Properties
Elongation Min. 300%
Temperature Range -20 up to +75° C
Tensile strength Min. 1.68Kg/mm2
Electrical Properties (at 20°C)
Conductor Resistance Max. 9.38 ohm/100m
Resistance Unbalance Max. 2%
Insulation Resistance 150 ohm/KM
Mutual Capacitance Max. 5600pF/100m
Cpacitance Unbalance Max. 330pF/100m
Impendance 100+/-15 ohm
Spark Test 2000V
Velocity Propagation 67%
  Attenuation RL Next PS Next
(MHz) (db/100m) (db) (db) (db/100m)
1MHz 2.0 20 65.3 63.5
4MHz 4.1 23 56.3 54.2
8MHz 5.8 24.5 52.4 50.5
10MHz 6.6 25 51.3 49.2
16MHz 8.2 25 49.3 47.4
20MHz 9.3 25 48.8 46.9
25MHz 10.4 24 45.3 43.4
31.25MHz 11.7 23 43.0 41.8
62.5MHz 17.0 21 39.2 37.2
100MHz 22.0 20 36.3 34.4
155MHz 28.1 19 35.5 33.6
200MHz 32.4 19 31.8 29.9
240MHz 36.0 18 30.6 28.7
300MHz 41.0 18 29.2 27
350MHz 44.9 17 28.0 25.6

Detailed Photos

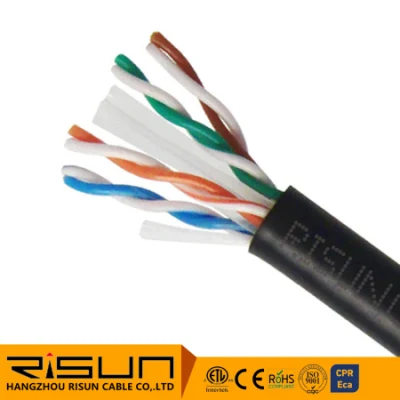

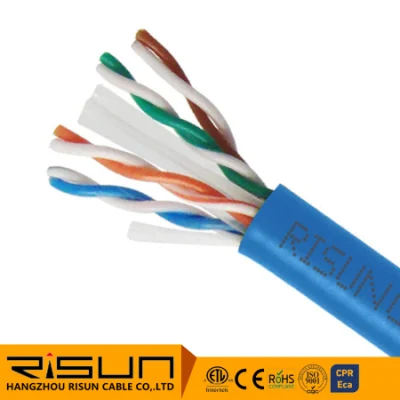

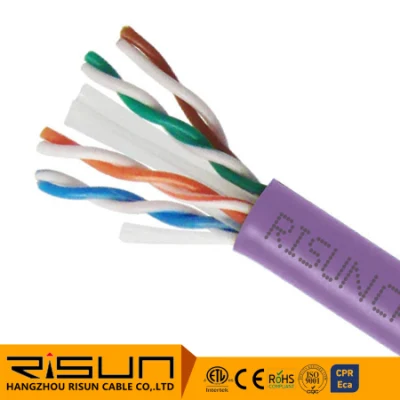

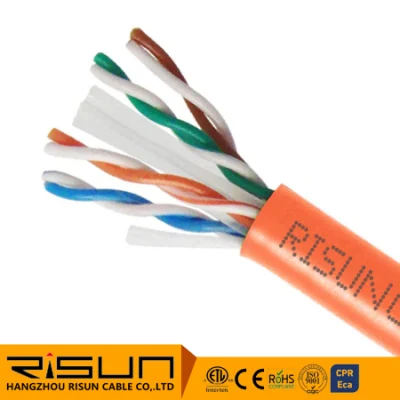

CAT6 F/UTP Bare Copper Communication Cable, 4-Pair, 1000FT
CAT6 F/UTP Bare Copper Communication Cable, 4-Pair, 1000FT

Packaging & Shipping

CAT6 F/UTP Bare Copper Communication Cable, 4-Pair, 1000FT

RISUN has it's own style of carton artwork. A carton factory support us to supply the most suitable carton for you. Your brand and artwork is also available.

Application



CAT6 F/UTP Bare Copper Communication Cable, 4-Pair, 1000FT
Certifications

CAT6 F/UTP Bare Copper Communication Cable, 4-Pair, 1000FT

Product Line



CAT6 F/UTP Bare Copper Communication Cable, 4-Pair, 1000FT
RISUN has two complete production line. 10 thousands box of UTP Cat5e cable per month.


Company Profile

About us
Hangzhou Risun Cable Co., Ltd specializes in manufacturing lan cable, network cable, alarm cable and telephone cable.

1. All of products we offer are top quality and competitive price;
2. If there is no special explanation, all of our Brand are RISUN or OEM;
3. Payment: We accept T/T and L/C;
4. Packing:
1) Packing Lengths: 305m/roll, or other lengths available according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull box
4) Other packing available according to client's request.
5. Any question, please contact us without hesitation. We'll reply as soon as we can.



Features

  • Independently tested and verrified by ETL
  • Humanized Design
  • Full series Keystone Jack supported
  • Separated structure inside the cable ensures the stable transmission of data.
Competitive Advantage
  • For quality, our superior raw material, skilled production team, advanced equipment and mature quality control system could assure you of that we could offer the cable with high and consistent quality.
  • For price, our offer can be much more competitive than other suppliers such as the trading company, as we have our own factory.
  • For production capacity, we could produce 30 million meters cable monthly, which will assure you of prompt delivery of the goods.
  • Certificates: ISO, CE, CCC,ETL, RoHS ,ANATEL & UL approval.




CAT6 F/UTP Bare Copper Communication Cable, 4-Pair, 1000FT

FAQ



- Q1: Are you a factory or trading company?
Link: We are a Factory, Distributor.

- Q2: Can I get a sample from you?
Link: Of course.we are highly glad to offer sample and welcome to test our productions

- Q3: What is the leading time?
Link: Sample order is 1-2 weeks, bulk order is about 20 days

- Q4: Can you provide OEM products with my brand and logo?
Link: No problem. Just send us your brand Letter of Authorization.

- Q5: Where is your factory located? How can I visit there?
Link: Our factory and office is located in Ningbo City, China.You can fly to Ningbo airport or Shanghai airport.
If needed, we'd like to help you to book hotel and pick you up from the airport or train station.
Warmly welcome to visit us!


- Q6: How does your factory do regarding quality control?
Link: Quality is priority.We always attach great importance to quality controlling for to the very end.
Our factory has gained CE,ROHS,SGS authentication.




Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
