1.54GHz~1.55GHz Narrow Band Low Noise RF/Microwave Power Amplifier SMA-F T/R Components

Get high performance with our 1.54-1.55GHz Narrow Band RF/Microwave Power Amplifier. We are a factory specializing in quality T/R components.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
SWPA015015G5008
Dimensions
46.9*16.8*8.1 mm (Max)
Weight
80g (Max)
Transport Package
Carton or as Per Customer Requirement
Specification
customized
Trademark
OEM
Origin
China
Production Capacity
10000PCS/Month

Product Description

1.54GHz~1.55GHz Narrow Band Low Noise RF/Microwave Power Amplifier SMA-F T/R Components

1.54GHz~1.55GHz Narrow Band Low Noise RF/Microwave Power Amplifier SMA-F T/R Components
1.54GHz~1.55GHz Narrow Band Low Noise RF/Microwave Power Amplifier SMA-F T/R Components




FEATURES:
Wide Bandwidth
Low Power Consumption
Low Noise Figure
Miniature Sizes, Field Removable connector
Compact/Rugged Thin-Film Construction


APPLICATIONS:
Microwave Radio & VSAT
Military & Space
Test Instrumentation
Fiber Optics

1.54GHz~1.55GHz Narrow Band Low Noise RF/Microwave Power Amplifier SMA-F T/R Components
ELECTRICAL SPECIFICATIONS@25˚C:
Parameter Min Typical Max Units
Frequency Range 1.54   1.55 GHz
Small Signal Gain 50     dB
Small Signal Gain Flatness     0.5 dB
Noise Figure     0.8 dB
Output Power 1dB compression 10     dBm
IP3 13     dBm
VSWR Input/output     1.4:1 Ratio
DC Power Supply   12   Volt
Current   200   mA
ENVIRONMENTAL RATINGS:
Parameter Min Typical Max Units
Max Input power     +20 dBm
Operating Temperature -45   +85 ˚C
Non-operating Temperature -55   +125 ˚C
Relative humidity (non-condensing)   95   %
Altitude (MIL-STD-810F) 10000   30000 feet
Shock / Vibration (MIL-STD-810F)   Airbone

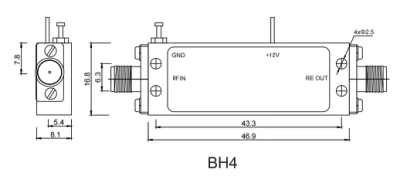

MECHANICAL SPECIFICATIONS:
Parameter Value Limits Units
Dimensions 46.9*16.8*8.1 Max Millimeter
Weight 80 Max gram
RF Connectors Input SMA-F
RF Connectors output SMA-F
Impedance 50   ohms
Note:miniature size,drop-in ,SMT and customized specification is also available



1.54GHz~1.55GHz Narrow Band Low Noise RF/Microwave Power Amplifier SMA-F T/R Components
1.54GHz~1.55GHz Narrow Band Low Noise RF/Microwave Power Amplifier SMA-F T/R Components
Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave antennas, active and passive components and subsystems. The company's product field covers a variety of microwave  communication devices, including anti-jamming antennas, RF power amplifiers, T/R modules, VCO/DROs, microwave filters, duplexers, frequency sources, and related subsystems, which are widely used in mobile communications, radar, and other fields.

In order to meet the special needs and higher requirements of customers, in addition to standard products, we provide customized product development methods. We always provide the customers with fast and high-quality products and services.


1.54GHz~1.55GHz Narrow Band Low Noise RF/Microwave Power Amplifier SMA-F T/R Components
1.54GHz~1.55GHz Narrow Band Low Noise RF/Microwave Power Amplifier SMA-F T/R Components
Packaging Details:

Default packaging. Normally carton, the packaging may be different if there is different production batch.


Port of Delivery: Shanghai




Shipment:


Dear customer,
please choose the most convenient method of shipment for you.



We have long-term cooperation with shippment agent, they will provide us the lowest quotation with the best service.



If you have a Courier account, please tell us before the confirmation of order.

1.54GHz~1.55GHz Narrow Band Low Noise RF/Microwave Power Amplifier SMA-F T/R Components



FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.



Q2. What about the lead time?

A: Sample ususally take within 3 working days.



Q3. Do you have any MOQ (minimum order quality)limit?

A: For standard product, usually 1pcs/item. For the OEM order, MOQ at least 50pcs/item.





Q4. How to proceed an order?

A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a alibaba paying link.



Q5. After paid, what info of the supplier provided?



A: Tracking number



Q6: Do you offer guarantee and after-service for the products?

A: Yes, 6- 12 months warranty for our products. Note: We will do not take the responsibility for Man-made damage or improper operation. Delivery demage will be negotiate.
