  • Overview
  • Product Description
  • Detailed Photos
Overview

Basic Info.

Model NO.
SDG1062X
Type
Function/Arbitrary Waveform Generators
Channel
2
Display
Capacitive Touch Screen
Sampling Rate
150 MSa/s
Vertical Resolution
14 Bit
Any Wave Length
16 Kpts
Screen Size
4.3 Inches
Size
260.3 mm*107.2 mm*295.7 mm
Transport Package
Moisture-Proof and Anti-Collision
Specification
Contact Us
Trademark
Siglent
Origin
China
Production Capacity
5000 / Quarter

Packaging & Delivery

Package Size
50.00cm * 30.00cm * 20.00cm
Package Gross Weight
10.000kg

Product Description

Product Description

SDG1000X Series Function/Arbitrary Waveform Generators

Product Overview

SIGLENT's SDG1000X dual-channel arbitrary waveform generators include up to 60 MHz maximum bandwidth, 150 MSa/s sampling rate and 14-bit vertical resolution. The proprietary EasyPulse & TrueArb technique helps to solve the weaknesses inherent in traditional DDS generators when generating pulse waveforms, and the special square generator is capable of generating square waveforms up to 60 MHz in frequency with low jitter. With these advantages, SDG1000X function generators can provide users with a variety of high fidelity/low jitter signals while meeting the growing requirements of a wide range of complex and varied applications.

Key Features

  • Dual-channel, with bandwidth up to 60 MHz, and amplitude up to 20 Vpp
  • 150 MSa/s sampling rate, 14-bit vertical resolution, and 16 kpts waveform length
  • Innovative EasyPulse technology, capable of generating lower-jitter Pulse waveforms, brings a wide range and extremely high precision in pulse width and rise/fall times adjustment
  • NEW: Innovative TrueArb technology supports user-defined waveforms from 2 to 16 kpts and user-defined sample rate from 1 μSa/s to 30 MSa/s



Specification parameters

Model Max Output Frequency Max Sampling Rate Vertical Resolution Waveform Length Channels
SDG1062X 60 MHz 150 MSa/s 14-bit 16 pts to 8 Mpts 2
SDG1032X 30 MHz 150 MSa/s 14-bit 16 pts to 8 Mpts 2
SDG1022X 25 MHz 150 MSa/s 14-bit 16 pts to 8 Mpts 2

  • Special circuit for Square wave function, can generate Square waves up to 60 MHz with jitter less than 300 ps+0.05 ppm of period
  • Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PSK and PWM
  • Sweep and Burst functions
  • Harmonics Generator function
  • Waveform Combining function
  • High precision Frequency Counter
  • Standard interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11)
  • Optional interface: GPIB
  • 4.3" TFT-LCD display
Detailed Photos

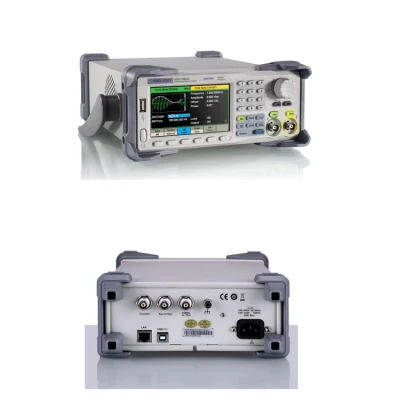

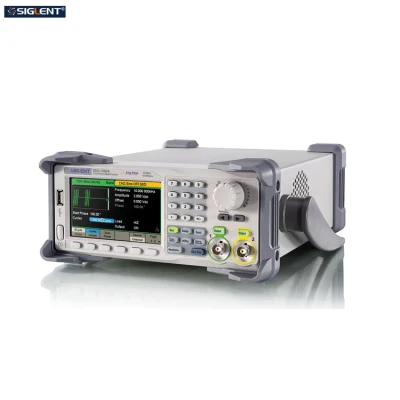

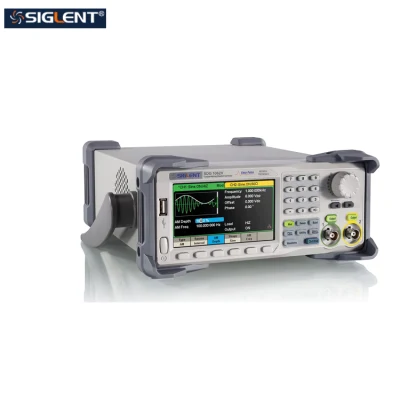

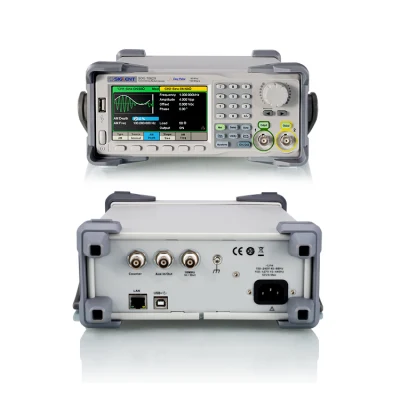

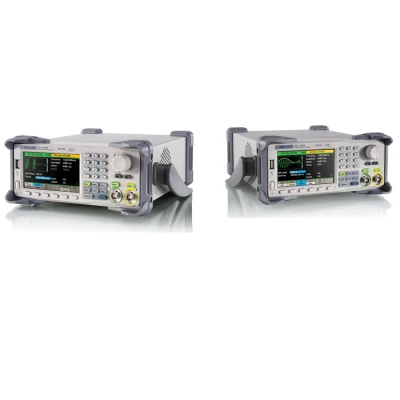

China Siglent RF Analog Function Arbitrary Waveform Signal Source Generator Sdg1062X China Siglent RF Analog Function Arbitrary Waveform Signal Source Generator Sdg1062X China Siglent RF Analog Function Arbitrary Waveform Signal Source Generator Sdg1062X China Siglent RF Analog Function Arbitrary Waveform Signal Source Generator Sdg1062X China Siglent RF Analog Function Arbitrary Waveform Signal Source Generator Sdg1062X China Siglent RF Analog Function Arbitrary Waveform Signal Source Generator Sdg1062X China Siglent RF Analog Function Arbitrary Waveform Signal Source Generator Sdg1062X China Siglent RF Analog Function Arbitrary Waveform Signal Source Generator Sdg1062X
