Basic Info.
Model NO.
CYTX080-E
Voltage
12V
Material
Plastic
Battery Type
Button Battery
Frequency
315MHz/433.92MHz
Working Current
10mA
Frequency Deviation
±0.2MHz
Power
10-15MW
Quiescent Current
0ua
Distance
50m in The Open Space
Code Available
EV1527/PT2240/HS1527
MOQ
100PCS
Ship by
DHL/FedEx/UPS
Lead Time
4 Weeks After Receiving Payment
Transport Package
Carton
Trademark
CY
Origin
China
HS Code
852920000
Production Capacity
200000PCS/Year
Product Description
General Description

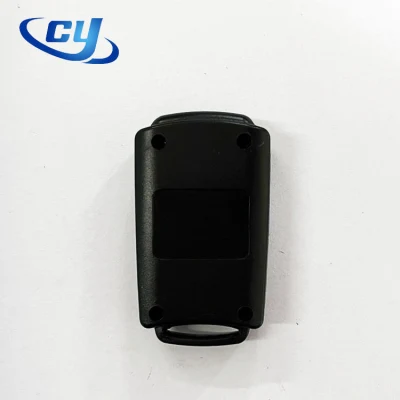

The learning code remote control is a transmitting device that adopts EV1527/PT2240 and other chip codes. It is a cost-effective and widely used wireless remote control coding method. The product has millions of different address codes and 4 fixed key values, which can be combined to generate 15 different keys at most. The product has different casings to choose from, and can be customized by mold opening or developed according to the customer's launch format to meet the needs of different customers.Applications
- Rolling shutter door, shutter window controller;
- Road gate, retractable door controller;
- Passenger door control system;
- remote control system;
- smart home system;
- remote control door opener;
- Wireless security alarm;
- Remote control curtain machine;
- Wireless industrial controller;
- RGB light bar, light strip, lighting fixture control;
Features
Frequency: 315MHZ/433.92MHZ(Other frequencies are available to customize)
Frequency Deviation: ±0.2MHZ
Modulation:ASK
Working Current:18mA(12V voltage supply)/10mA(3V_6V voltage supply)
Quiescent Current: 0uA
Transmission Power: 10-15mW
Transmission Distance: 50m in the open space
Coding: EV1527/PT2240/HS1527
