5dB 6dB 7dB 8dB in Building Directional Coupler 698-4200MHz D-F

Introducing our Building Directional Coupler 698-4200MHz D-F with a range of -5dB, -6dB, -7dB, and -8dB. As a factory, we guarantee high-quality and reliable performance. Upgrade your signal distribution with our coupler today! SEO description: Upgrade your signal distribution with our high-quality Building Directional Coupler 698-4200MHz D-F. Available in -5dB, -6dB, -7dB, and -8dB, guaranteed performance from our factory.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
OHQ-0742-XX3301
Application
Indoor/Outdoor(IP65)
Transport Package
Carton/Palletizing
Specification
see below data table
Trademark
BF TECH
Origin
China
Production Capacity
200000PCS/Year

Product Description

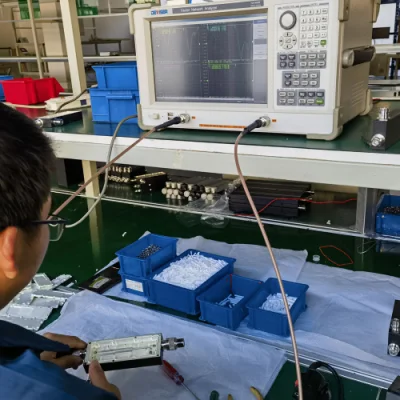

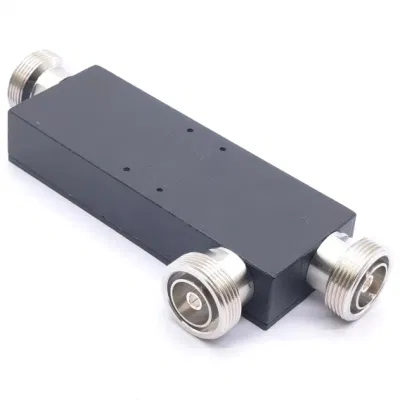

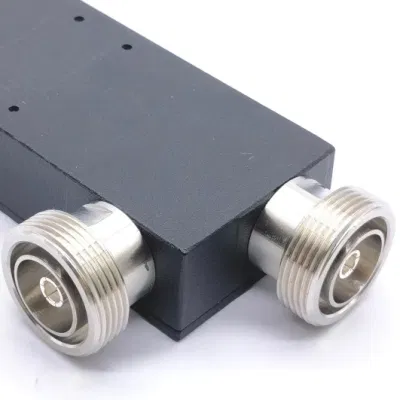

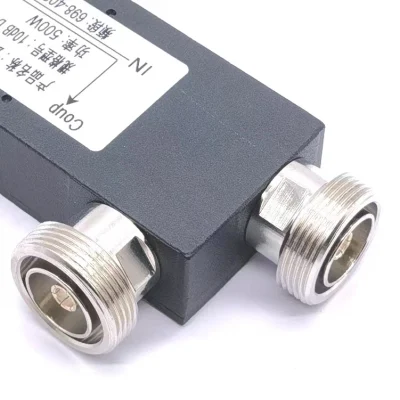

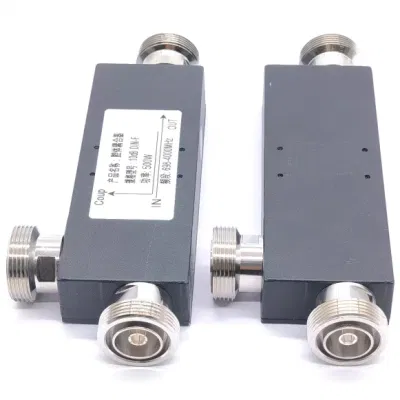

5dB 6dB 7dB 8dB in Building Directional Coupler 698-4200MHz D-F
FEATURES:
★Wide frequency band, wide coverage.
★PIM optimized design.
★Ideal for all kind of IBS/DAS/PDAS applications.
★Low insertion loss.
★High power handling.
★Small size, Low weight.
★Good stability.


Specifications:

Frequency Range(MHz) 698-4200
Coupling(dB) 3 5 6 7 8 10 12
Coupling Loss (dB) 698-3800MHz ±0.9 ±0.9 ±0.9 ±1 ±1.1 ±1.2 ±1.2
3800-4200MHz ±1.8 ±1.8 ±1.8 ±1.8 ±2 ±2 ±2
Insertion Loss (dB) ≤3.8 ≤2.3 ≤1.76 ≤1.47 ≤1.42 ≤0.96 ≤0.94
Isolation (dB) ≥21 ≥23 ≥24 ≥25 ≥26 ≥28 ≥30
Coupling(dB) 13 15 20 25 30 40
Coupling Loss (dB) 698-3800MHz ±1.2 ±1.2 ±1.3 ±1.3 ±1.5 ±1.7
3800-4200MHz ±2 ±2 ±2 ±2 ±2 ±2
Insertion Loss (dB) ≤0.6 ≤0.44 ≤0.34 ≤0.32 ≤0.3 ≤0.3
Isolation (dB) ≥31 ≥33 ≥38 ≥43 ≥48 ≥55
VSWR ≤ 1.3
PIM3 (dBc@2*43dBm) ≤ -160
Input Power(W) 500
Impedance(Ω) 50
RF Connector DIN-F
Color Black
Relative humidity 5%~95%
Operating Temperature(°C) -35 ~ +75
Applications Indoor/Outdoor(IP65)
