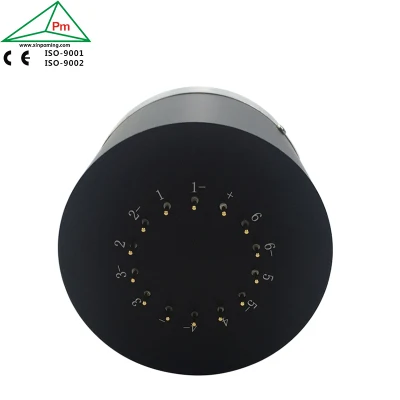

DC-18g/40g Sp6t Ttl Control RF Coaxial Switch with SMA/2.92 Connector (failsafe, terminated with D-SUB) or Customized

Introducing our DC-18g/40g Sp6t Ttl Control RF Coaxial Switch with SMA/2.92 Connector - failsafe, terminated with D-SUB. We are a leading factory in customized RF products.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
SP6T
Materials
Stainless Steel
Standard
N Connector
Frequency
DC - 12.4GHz
Actuator Voltage
12V/24V/28V
Position Numbers
4/5/6
Ttl Options
with/Without
Pin Options
D-SUB 15pins
Vswr (Max.)
1.25/1.45/1.7
Insertion Loss (Max)dB
0.3/0.4/0.7
Isolation (Min)dB
70/60/55
Impedance
50 Ohm
Switching Time(Max)
< 20 Ms
Connector
N-Female
Temperature Range
-25 to +65
Operation Life (Cycles)
1, 000, 000(Standard)
Vibration (Operating)
10g RMS, 20-2000Hz
Mechanical Shock (Non-Operating)
50g, 1/2sine, 11msec
Transport Package
Cartons
Specification
none
Trademark
JML
Origin
Shenzhen, Guangdong, China
HS Code
8536500000
Production Capacity
5000 Piece Per Month

Product Description

Technical Parameters.
In order to give you the best price, please kindly specify your requirements as clearly as possible.
OEM and ODM is welcome, we have professional and experienced engineer team for you.

Features:

  • High Performance
  • High Reliability
  • Low Insertion Loss
  • High Isolation

Applications:

  • Radar Systems
  • Communication Systems
  • Receiving Systems
DC-18g/40g Sp6t Ttl Control RF Coaxial Switch with SMA/2.92 Connector (failsafe, terminated with D-SUB) or Customized
DC-18g/40g Sp6t Ttl Control RF Coaxial Switch with SMA/2.92 Connector (failsafe, terminated with D-SUB) or Customized
DC-18g/40g Sp6t Ttl Control RF Coaxial Switch with SMA/2.92 Connector (failsafe, terminated with D-SUB) or Customized


Part Number Selection:
DC-18g/40g Sp6t Ttl Control RF Coaxial Switch with SMA/2.92 Connector (failsafe, terminated with D-SUB) or Customized


Frequency Type Actuator Voltage Number of Position TTL Options Options
3:up to 3 GHz 1: Normally Open 2: 12V 4: 4 postions 0: without TTL 3:D-sub 15pins
6:up to 6 GHz 2: Latching 3: 24V 5: 5 positons 1: with TTL(high level)
18:up to 6 GHz   4: 28V 6: 6 positons 2: with TTL and indicators

Electrical Specification:

Numbers of Frequency Range VSWR Insertion Loss Isolation Impedance
Positions (GHz) (max.) (max)dB (min)dB (Ω)
4-6 DC-4 1.25 0.3 70 50
4-8 1.45 0.4 60
8-12.4 1.7 0.7 55

Parameter Min. Typ. Max Units

TTL input
High Level 2.2 to 5.5V(TTL Option)
Vdc
  Low Level 0 to 0.8V(TTL Option)
Switching time(max) 20 ms
Connector N-Female
Temperature Range -25 to +65 0C
Operation Life (cycles) 1,000,000(Standard)
Vibration (operating) 10G RMS, 20-2000Hz
Mechanical Shock (non-operating) 50G, 1/2Sine, 11msec
Weight(approx.) /

Connector Pinout:
Normally Open
15 Pins D-Sub Pinout
Normally Open TTL
15 Pins D-Sub Pinout
Latching
15 Pins D-Sub Pinout
Latching TTL
15 Pins D-Sub Pinout
Pin No. Pinout Pin No. Pinout Pin No. Pinout Pin No. Pinout
n=1-6 Vn(Jn-COM) n=1-6 An(Jn-COM) n=1-6 Vn(Jn-COM) n=1-6 An(Jn-COM)
7 GND 7 GND 7 GND 7 GND
8 1(IND:J1-C) 8 1(IND:J1-C) 8 1(IND:J1-C) 8 1(IND:J1-C)
9 2(IND:J2-C) 9 2(IND:J2-C) 9 2(IND:J2-C) 9 2(IND:J2-C)
10 3(IND:J3-C) 10 3(IND:J3-C) 10 3(IND:J3-C) 10 3(IND:J3-C)
11 4(IND:J4-C) 11 4(IND:J4-C) 11 4(IND:J4-C) 11 4(IND:J4-C)
12 5(IND:J5-C) 12 5(IND:J5-C) 12 5(IND:J5-C) 12 5(IND:J5-C)
13 6(IND:J6-C) 13 6(IND:J6-C) 13 6(IND:J6-C) 13 6(IND:J6-C)
14 GND_I 14 GND_I 14 GND_I 14 GND_I
15 / 15 VCC 15 / 15 VCC


Package and Shipment Details:
1) Neutral Master Carton Package;
2) Customized Package;
DC-18g/40g Sp6t Ttl Control RF Coaxial Switch with SMA/2.92 Connector (failsafe, terminated with D-SUB) or Customized


Product Equipment Line:
DC-18g/40g Sp6t Ttl Control RF Coaxial Switch with SMA/2.92 Connector (failsafe, terminated with D-SUB) or Customized

Quality Controls:

With more than 10 years experience, we produce A-Grade voltage stabilizer/regulator and can offer OEM & ODM service.
All our products have CE certificate and some have obtained patent.
