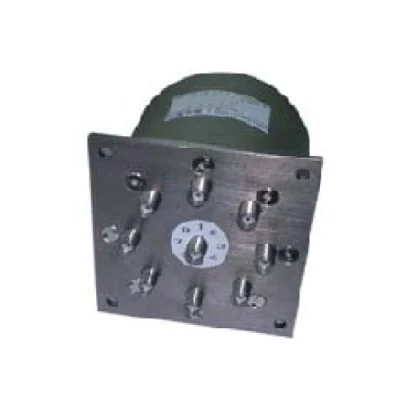

DC-18GHz 60-90dB Isolation With Termination & With TTL SP8T Failsafe Coaxial Switch

Coaxial switches could be controlled by voltage or computer programmable and are used in switching over in microwave circuit. According to the amount of output ports they include SPDT-SP8T, 2PDT, 2P3T and Transfer etc.
SWT-801 serial coaxial switches' frequency range DC-26.5GHz and the features include low Insertion Loss,low VSWR and excellent wide-band performance.


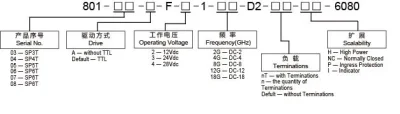

DC-18GHz 60-90dB Isolation with Termination & with Ttl Sp8t Failsafe Coaxial Switch
RF Characteristics
Frequency (GHz) VSWR Isolation (dB) Ins. Loss (dB)
DC~2 1.15 90 0.2
2~4 1.2 80 0.2
4~8 1.3 75 0.25
8~12 1.4 70 0.35
12~18 1.6 60 0.5

Specifications
Operating Voltage DC12V, 24V, 28V
Coil Current 190mA/12V,130mA/24V,110mA/28V
Switch Time ≤20ms
Operating Temperature -40ºC~+85ºC
Storage Temperature -55ºC~+85ºC
Mechanical Life,circles ≥106
TTL Drive Voltage 2.5~5V
TTL Drive Current 0.02~0.8mA
Impedance 50Ω
Weight 400g

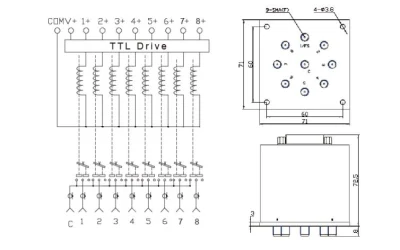

Notes:
1. Dimensions Tolerance ±2%
2. Custom designs available.
TTL option includes suppression diode
