DC-12.4 GHz 55-70dB Isolation Without Termination & with Ttl N Type Spdt Spdt Coaxial Switch

Product: DC-12.4 GHz 55-70dB Isolation Without Termination with TTL N Type SPDT Coaxial Switch Description: As a factory, we produce high-quality and durable DC-12.4 GHz SPDT coaxial switches with 55-70dB isolation, perfect for various applications.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
SWT-DT628-1S09-12.4G
Ttl Drive Current
0.02-0.8mA
Transport Package
Carton or as Per Customer Requirement
Specification
customized
Trademark
SWT
Origin
China
Production Capacity
1000 / Month

Product Description

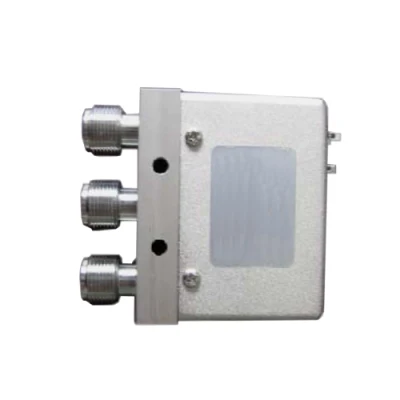

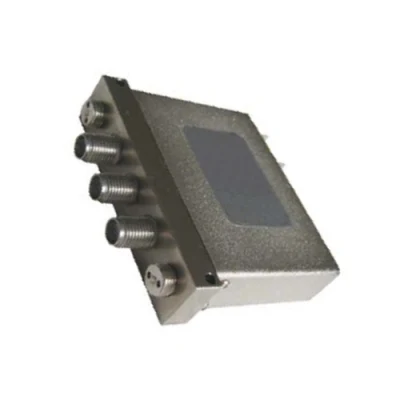

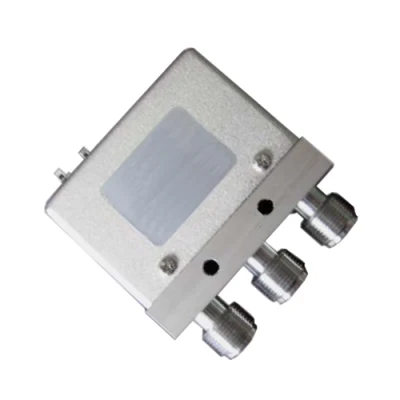

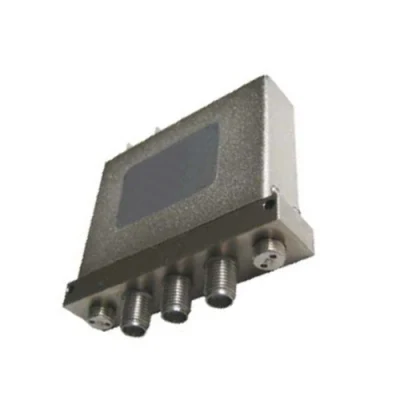

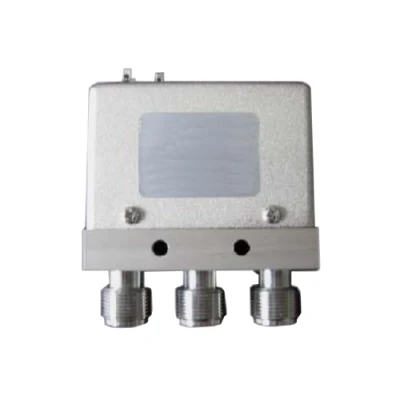

DC-12.4GHz 55-70dB Isolation Without Termination & With TTL N Type SPDT Coaxial Switch

Coaxial switches could be controlled by voltage or computer programmable and are used in switching over in microwave circuit. According to the amount of output ports they include SPDT-SP8T, 2PDT, 2P3T and Transfer etc.
SWT-801 serial coaxial switches' frequency range DC-26.5GHz and the features include low Insertion Loss,low VSWR and excellent wide-band performance.


DC-12.4 GHz 55-70dB Isolation Without Termination & with Ttl N Type Spdt Spdt Coaxial Switch
RF Characteristics
Frequency range GHz VSWR MAX Isolation, Min dB Insertion loss Max dB
DC- 1 1.15 85 0.15
1-2 1.20 80 0.20
2-4 1.25 70 0.25
4-8 1.35 60 0.40
8- 12.4 1.50 60 0.50
Electrical performance:

Control voltage 28 Vd.c. ±2 Vd.c.
Current 135 mA @ 20ºC
Switchover 20 ms
Service life 1 Million times
Operating temperature -25ºC~ +85ºC
-55ºC~ +85ºC
Vibrate 10 g rms     20-2000Hz (Vibration, operation)
50 g ,1/2sine ,11ms   (Mechanical shock, non-operational)
Weight 260 g
DC-12.4 GHz 55-70dB Isolation Without Termination & with Ttl N Type Spdt Spdt Coaxial Switch




Notes:
1. Dimensions Tolerance ±2%
2. Custom designs available.
DC-12.4 GHz 55-70dB Isolation Without Termination & with Ttl N Type Spdt Spdt Coaxial Switch
DC-12.4 GHz 55-70dB Isolation Without Termination & with Ttl N Type Spdt Spdt Coaxial Switch DC-12.4 GHz 55-70dB Isolation Without Termination & with Ttl N Type Spdt Spdt Coaxial Switch DC-12.4 GHz 55-70dB Isolation Without Termination & with Ttl N Type Spdt Spdt Coaxial Switch
Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave passive components and subsystems. The company's product field covers a variety of microwave communication devices, including microwave filters, duplexers, amplifiers, frequency sources, and related subsystems, which are widely used in mobile communications and other fields.

In terms of microwave filters, the company has comprehensive products and strong design capabilities. The main products include cavity band-stop filter, waveguide filter, electrically tunable filter, multi-frequency combiner, multi-frequency combining platform POI, dielectric cavity dual-mode filter, LC filter, miniaturized comb filter, interdigital filter, etc.

In order to meet the special needs and higher index requirements of customers, in addition to standard products, we provide customized product development methods, and wholeheartedly provide customers with fast and high-quality products and services.
DC-12.4 GHz 55-70dB Isolation Without Termination & with Ttl N Type Spdt Spdt Coaxial Switch
DC-12.4 GHz 55-70dB Isolation Without Termination & with Ttl N Type Spdt Spdt Coaxial Switch
DC-12.4 GHz 55-70dB Isolation Without Termination & with Ttl N Type Spdt Spdt Coaxial Switch
DC-12.4 GHz 55-70dB Isolation Without Termination & with Ttl N Type Spdt Spdt Coaxial Switch

Q&A:

Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.

Q2. What should I do if I don't know about frequency in my country?

Please feel free to contact us with your inquiry, we will find the frequency you need and offer help to your problems.


Q3. Do you accept OEM/ODM order?
Yes, we can customize the brand logo, colors, and frequencies.



Q4.Shipment Date

Sample 20 business days
≤50 pcs 60  business days
>50 pcs 90 business  days
>200 pcs Negotiate

Q5: Delivery Date of the sample by DHL/FedEx
USA/Canada/Europe/Asia 3-5 days
Middle East/Latin American 5-7 days
African 3-7 days

DC-12.4 GHz 55-70dB Isolation Without Termination & with Ttl N Type Spdt Spdt Coaxial Switch DC-12.4 GHz 55-70dB Isolation Without Termination & with Ttl N Type Spdt Spdt Coaxial Switch

Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
