DC-18GHz RF Microwave Without Termination & with Ttl Sp3-6t Latching Coaxial Switch

Product Name: DC-18GHz RF Microwave Without Termination & with TTL SP3-6T Latching Coaxial Switch SEO Description: We are a factory specializing in manufacturing high-quality DC-18GHz RF microwave products with TTL SP3-6T latching coaxial switches.
Request a Quote

PRODUCTS DETAILS

Basic Info.

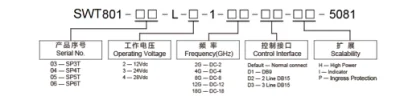

Model NO.
SWT801-06-L-2-1-8G-5081
Ttl Drive Current
0.02-0.8mA
Transport Package
Carton or as Per Customer Requirement
Specification
customized
Trademark
SWT
Origin
China
Production Capacity
1000 / Month

Product Description

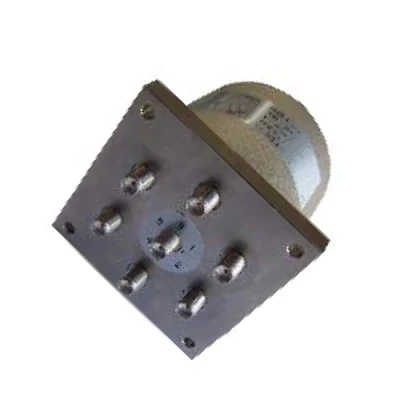

DC-18GHz RF Microwave Without Termination & With TTL SP3-6T Latching Coaxial Switch

Coaxial switches could be controlled by voltage or computer programmable and are used in switching over in microwave circuit. According to the amount of output ports they include SPDT-SP8T, 2PDT, 2P3T and Transfer etc.
SWT-801 serial coaxial switches' frequency range DC-26.5GHz and the features include low Insertion Loss,low VSWR and excellent wide-band performance.


DC-18GHz RF Microwave Without Termination & with Ttl Sp3-6t Latching Coaxial Switch
RF Characteristics
Frequency (GHz) VSWR Isolation (dB) Ins. Loss (dB)
DC~2 1.15 90 0.2
2~4 1.2 80 0.2
4~8 1.3 75 0.3
8~12 1.4 70 0.4
12~18 1.5 60 0.5

Specifications
Operating Voltage DC12V, 24V, 28V
Coil Current 190mA/12V,110mA/24V,100mA/28V
Switch Time ≤20ms
Operating Temperature -40ºC~+85ºC
Storage Temperature -55ºC~+85ºC
Mechanical Life,circles ≥106
TTL Drive Voltage 2.5~5V
TTL Drive Current 0.02~0.8mA
Impedance 50Ω
Weight 140g

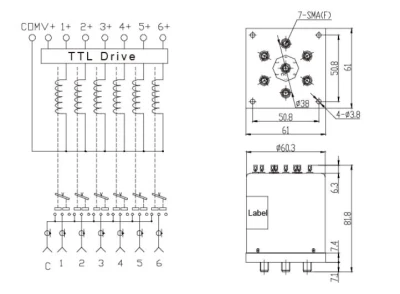

Notes:
1. Dimensions Tolerance ±2%
2. Custom designs available.
TTL option includes suppression diode

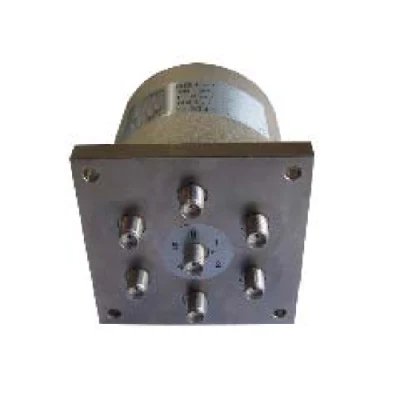

DC-18GHz RF Microwave Without Termination & with Ttl Sp3-6t Latching Coaxial Switch
DC-18GHz RF Microwave Without Termination & with Ttl Sp3-6t Latching Coaxial Switch DC-18GHz RF Microwave Without Termination & with Ttl Sp3-6t Latching Coaxial Switch DC-18GHz RF Microwave Without Termination & with Ttl Sp3-6t Latching Coaxial Switch
Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave passive components and subsystems. The company's product field covers a variety of microwave communication devices, including microwave filters, duplexers, amplifiers, frequency sources, and related subsystems, which are widely used in mobile communications and other fields.

In terms of microwave filters, the company has comprehensive products and strong design capabilities. The main products include cavity band-stop filter, waveguide filter, electrically tunable filter, multi-frequency combiner, multi-frequency combining platform POI, dielectric cavity dual-mode filter, LC filter, miniaturized comb filter, interdigital filter, etc.

In order to meet the special needs and higher index requirements of customers, in addition to standard products, we provide customized product development methods, and wholeheartedly provide customers with fast and high-quality products and services.
DC-18GHz RF Microwave Without Termination & with Ttl Sp3-6t Latching Coaxial Switch
DC-18GHz RF Microwave Without Termination & with Ttl Sp3-6t Latching Coaxial Switch
DC-18GHz RF Microwave Without Termination & with Ttl Sp3-6t Latching Coaxial Switch
DC-18GHz RF Microwave Without Termination & with Ttl Sp3-6t Latching Coaxial Switch

Q&A:

Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.

Q2. What should I do if I don't know about frequency in my country?

Please feel free to contact us with your inquiry, we will find the frequency you need and offer help to your problems.


Q3. Do you accept OEM/ODM order?
Yes, we can customize the brand logo, colors, and frequencies.



Q4.Shipment Date

Sample 20 business days
≤50 pcs 60  business days
>50 pcs 90 business  days
>200 pcs Negotiate

Q5: Delivery Date of the sample by DHL/FedEx
USA/Canada/Europe/Asia 3-5 days
Middle East/Latin American 5-7 days
African 3-7 days

DC-18GHz RF Microwave Without Termination & with Ttl Sp3-6t Latching Coaxial Switch DC-18GHz RF Microwave Without Termination & with Ttl Sp3-6t Latching Coaxial Switch
