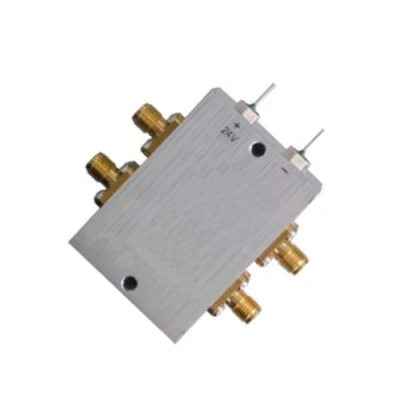

DC-1GHz 10W average power low Insertion Loss DPDT Coaxial Switch

Coaxial switches could be controlled by voltage or computer programmable and are used in switching over in microwave circuit. According to the amount of output ports they include SPDT-SP8T, 2PDT, 2P3T and Transfer etc.
SWT-TKC-1000 DPDT coaxial switches' average power 10W, frequency range DC-1GHz and the features include low Insertion Loss,low VSWR and excellent wide-band performance.

DC-1GHz 10W Average Power Low Insertion Loss Dpdt Coaxial Switch

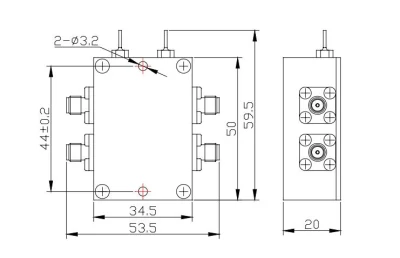

MECHANICAL SPECIFICATIONS
Connectors Female Pin Housing Temp Range Dimensions Weight
Brass Gold Plated Beryllium Copper Gold Plated Aluminum, Anodic Oxidation Operating: -10°C~+50°C Non-operating: -40°C~+70°C 53.5×59.5×20mm 80g
RoHS Complient: Yes

ELECTRICAL SPECIFICATIONS
Model Number Frequency Range (GHz) Max VSWR Insertion Loss (dB) Isolation (dB)
SWT-TKC-1000 DC-1 1.4 ≤0.75 ≥50

NOMINAL IMPEDANCE  50Ω
AVERAGE POWER 10W
OPERATING VOLTAGE +12V
COIL CURRENT ≤100mA
SWITCHING TIME 10ms min
CONNECTOR TYPE SMA(F)
Notes:
1. Dimensions Tolerance ±2%
