Digital CCTV Signal Rg59+2c Coaxial Cable

Get high-quality Digital CCTV Signal Rg59+2c Coaxial Cable direct from the factory. Perfect for reliable and clear video surveillance systems. Buy now!
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Parameters
  • Detailed Photos
  • Company Profile
  • Our Advantages
  • FAQ
Overview

Basic Info.

Model NO.
COAXIAL
Species
VGA
Connector
RCA
Material Shape
Round Wire
Wire Core Material
Bare Copper Wire
Certification
RoHS, CE
Brand
Hanli
Conductor
Copper/CCA
Insulation
Foam PE
Shield
Al Foil
Jaket
PVC/LSZH
Transport Package
100m/Coil
Specification
30X30X30CM
Trademark
hanli
Origin
Zhejiang
Production Capacity
3000000m/Month

Packaging & Delivery

Package Size
30.00cm * 30.00cm * 30.00cm
Package Gross Weight
3.000kg

Product Description

Product Description

Coaxial cable RG59 add 2c power cable  wire Coaxial cable

BC: Bare Copper   CCS: Copper Clad Steel
TC: Tinned Copper   CCA: Copper Clad Aluminum

Specifications:
1)  RG59 Coaxial Cable  75ohm Double shield(standard)
0.81mm BC/CCS Conductor + 3.77mm PE Foam + Al Foil + CCA/BC/Alloy Braiding + 6.0mm PVC Jacket
 2)  RG59 Coaxial Cable  75ohm Tri-shield
0.81mm BC/CCS Conductor + 3.7mm PE Foam + Bonded Al Foil + CCA/BC/Alloy Braiding + Al Foil + 6.1mm PVC Jacket
3)  RG59 Coaxial Cable  75ohm  Quad shielded
0.81mm BC Conductor + 3.7mm PE Foam +  Bonded-Al Foil +  CCA/BC/Alloy Braiding  +  A Foil +  CCA/BC/Alloy Braiding + 6.3mm PVC Jacket
4)  Customers'specifications are welcomed

 Product Description:

1)     Center conductor:BC,TC,CCA,CCS
2)     Al-foil:Non-bonded Al-foil, bonded Al-foil,double bonded Al-foil,and double
         non-bonded Al-foil are available
3)     Braiding wire:Al,BC,,TC,CCA,CCS Available
4)     Braiding wire diameter:0.10,0.11,0.12,0.13,0.14,0.15,0.16mm available
5)     Braiding net:32,48,64,72,80,96,120,128,144 and more available
6)     Braiding coverage:Between 30-97%
7)     PVC jacket of flame retardant,UL Available

Application:

Used as a distribution cable for indoor CATV,CCTV systems and as a connection cable for satellite systems where lower attenuation required.

 Packing:

1)     Packing Lengths:100/roll,200m/roll,300m/roll.305m/roll
2)     Inner Packing:Wooden reel,plastic reel,and paper reel
3)     Outer Packing:Carton box,pull out box,pallet available
4)     Other packing available according to clients'request



Product Parameters

Electrical characteristics

@ Frequency MHz dB/100 ft. (MAX.) dB/100 meters (MAX.)
5 MHz 0.58 dB 2.65 dB
55 MHz 1.60 dB 5.25 dB
83 MHz 1.95 dB 6.40 dB
187 MHz 2.85 dB 9.35 dB
211 MHz 3.05 dB 10.00 dB
250 MHz 3.30 dB 10.82 dB
300 MHz 3.55 dB 11.64 dB
350 MHz 3.85 dB 12.63 dB
400 MHz 4.15 dB 13.61 dB
450 MHz 4.40 dB 14.43 dB
500 MHz 4.66 dB 15.29 dB
550 MHz 4.90 dB 16.08 dB
600 MHz 5.10 dB 16.73 dB
750 MHz 5.65 dB 18.54 dB
865 MHz 6.10 dB 20.01 dB
1000 MHz 6.55 dB 21.49 dB
Detailed Photos

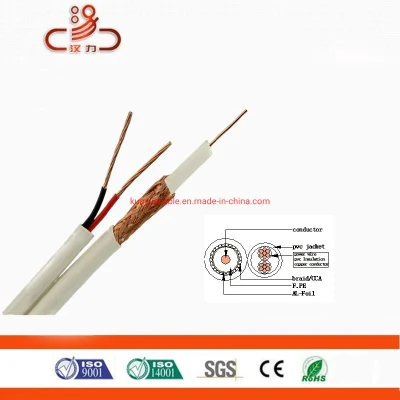

Digital CCTV Signal Rg59+2c Coaxial Cable

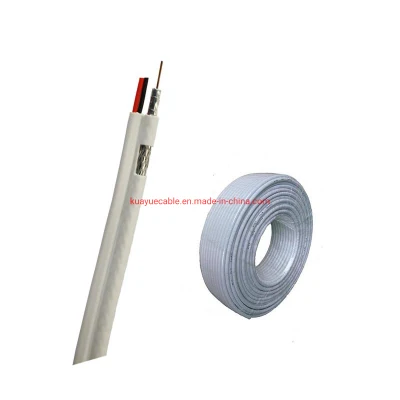

Digital CCTV Signal Rg59+2c Coaxial Cable

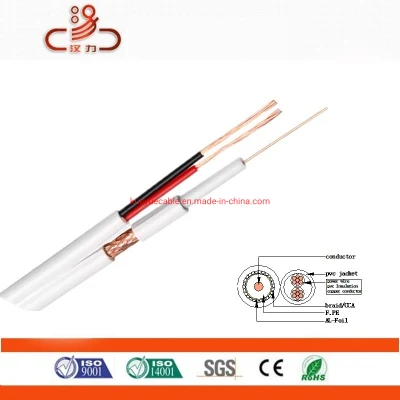

Digital CCTV Signal Rg59+2c Coaxial Cable

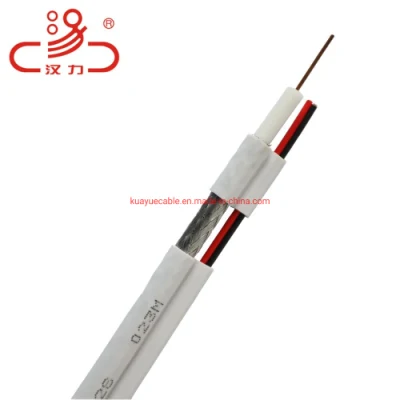

Digital CCTV Signal Rg59+2c Coaxial Cable
Company Profile

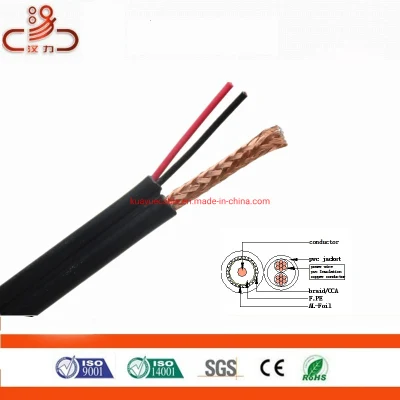

Digital CCTV Signal Rg59+2c Coaxial Cable
ABOUT US
Zhejiang Hanli Cable Co., Ltd. is a professional manufacturer of tv cables and cable television network equipment. It has more than 300 employees, including 100 engineers with college degree or above, and more than 50 directly engaged in high-tech and new product research and development. And has a production site of more than 38,000 square meters, 12 domestic and imported production equipment, and a number of advanced cable testingequipment.

      The company's leading products include SYWV(Y)-75 series physical high foaming RF coaxial cableRG series access network coaxial cableSYWLY-75 series aluminum tube cable,digital communication cable and digital monitoring lineetc sold abroad. The company's technology center mainly develops new productsnew processes and new technologies, and has successively developed more than 30 provincial-level new products of which 26 have obtained national patents,and ten products have been identified as high-tech products in Zhejiang Province. This project was identified as a National Torch Program project. In the futurethe company will continue to develop new products and new processes to meet the high-tech and high-standard demands of the market.
Digital CCTV Signal Rg59+2c Coaxial CableDigital CCTV Signal Rg59+2c Coaxial CableDigital CCTV Signal Rg59+2c Coaxial Cable

Our Advantages

Welcome to visit our factory and  get our samples.
  Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.

Choose us, won't make you disappointed:
1.15years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)



FAQ

1.Can I have some samples for testing quality?
A1.Yes, you can buy some samples of any our products for testing quality and market.
2.What is delivery time if we place order?
A2. It depends on order quanities. Usually,we can deliver goods within 15 days for small order. For more QTY, Let's confirm when you place official order.
3.Do you accept OEM/ODM?
A3. We support OEM/ODM service.pls don't hesitate to tell us your details.
