High Performance Factory Supply SMA-Female 50W 2-4GHz 10dB 30dB 40dB RF Bi-Directional Coupler for in-Building Solutions From Topwave Telecommunication Systems

Topwave Telecommunication Systems offers high performance SMA-Female 50W 2-4GHz 10dB 30dB 40dB RF Bi-Directional Couplers for in-building solutions. As a factory, we supply reliable and efficient products for all your RF needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Features & Benefits
  • Company Profile
  • VHF UHF PS700/800MHz Series
  • Small Cells Antenna
  • In-building DAS Communication
  • FAQ
Overview

Basic Info.

Model NO.
TPW-DC-XX-24-SMAF
Information content
Data
Certification
CE, ISO, RoHS
Condition
New
Connector
SMA Female
Frequency
2-4GHz
Impedance
50ohm
Operating Temperature
-40~+85
Relative Humidity
5%-95%
Watertightness
IP67
Power Rating
50W
Transport Package
Standard Export Packing Carton
Specification
See Mechanical Drawing
Trademark
Topwave
Origin
China
HS Code
8517799000
Production Capacity
10000PCS/ Month

Packaging & Delivery

Package Size
8.00cm * 4.00cm * 3.00cm
Package Gross Weight
0.500kg

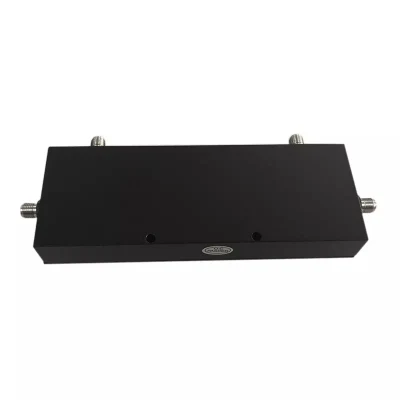

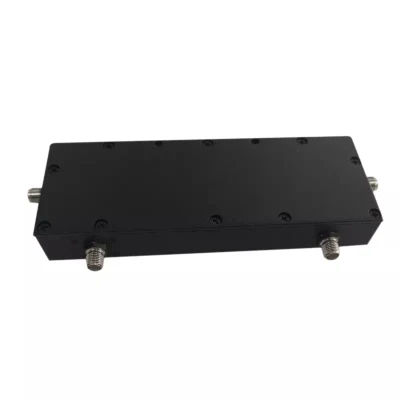

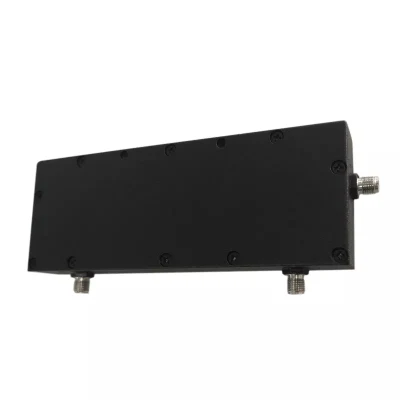

Product Description


Model No. TPW-DC-XX-24-SMAF(XX means coupling in dB)
Coupling(dB) 6 8 10 15 20 30
Accuracy(dB) ±1.5 ±1.6 ±2.0 ±2.5 ±3 ±3.5
Insertion Loss(dB) ≤2.0 ≤2.0 ≤1.2 ≤0.8 ≤0.5 ≤0.4
Isolation(dB) ≤18 ≤20 ≤22 ≤27 ≤30 ≤38
Freq(MHz) 2-4GHz
VSWR ≤1.5
PIM Rating(dBc) -155dBc@2x43dBm(698-2700MHz)
Power Rating(W) 50W (average Per Port)
Impedance 50 ohm
Connector SMA-Female
Color Black
Operating Temperature(ºC) -25°C to +75°C
Weight(kg) 0.40


High Performance Factory Supply SMA-Female 50W 2-4GHz 10dB 30dB 40dB RF Bi-Directional Coupler for in-Building Solutions From Topwave Telecommunication Systems



Features & Benefits

·Narrow Frequency Band Coverage
·Compact, low weight

·Low Insertion Loss
·Indoor Using IP60
·High reliability and Simple installation
·Available with Type N, 7/16DIN or 4.3/10 Connectors

Company Profile

High Performance Factory Supply SMA-Female 50W 2-4GHz 10dB 30dB 40dB RF Bi-Directional Coupler for in-Building Solutions From Topwave Telecommunication SystemsHigh Performance Factory Supply SMA-Female 50W 2-4GHz 10dB 30dB 40dB RF Bi-Directional Coupler for in-Building Solutions From Topwave Telecommunication Systems
High Performance Factory Supply SMA-Female 50W 2-4GHz 10dB 30dB 40dB RF Bi-Directional Coupler for in-Building Solutions From Topwave Telecommunication Systems
High Performance Factory Supply SMA-Female 50W 2-4GHz 10dB 30dB 40dB RF Bi-Directional Coupler for in-Building Solutions From Topwave Telecommunication SystemsHigh Performance Factory Supply SMA-Female 50W 2-4GHz 10dB 30dB 40dB RF Bi-Directional Coupler for in-Building Solutions From Topwave Telecommunication SystemsHigh Performance Factory Supply SMA-Female 50W 2-4GHz 10dB 30dB 40dB RF Bi-Directional Coupler for in-Building Solutions From Topwave Telecommunication Systems

VHF UHF PS700/800MHz Series



VHF, UHF, PS700/800MHz Series of Components

Topwave Telecom's VHF, UHF, PS700/800MHz frequency band components have been widely deployed in a full range of mission critical communication networks to provide emergency and secure communication service in public safety fields including Fire, Medical and other government agencies.


Topwave Public Safety series covers various of components from Power Splitter, Directional Coupler, Hybrid Coupler, Power Tapper, FirstNet Filter to 700/800MHz Combiner/Multiplexer, which could exactly meet your need for Public Safety DAS, Critical Communication and two way radio system! We have much more components for you to explore, contact us for details!!!



High Performance Factory Supply SMA-Female 50W 2-4GHz 10dB 30dB 40dB RF Bi-Directional Coupler for in-Building Solutions From Topwave Telecommunication Systems

Small Cells Antenna

Small Cells Antennas for 5G Base Station


Topwave is a leading Telecom & RF products manufacturer providing networking and communication services to customer all over the world. We provide and manufacture world-class advance innovative antennas along with other related products for end-to-end antenna solutions with exceptional performance.
We are one of the top providers of world-class 5G communication products in Hefei, China.

Topwave has proven to be a game-changer by bringing a drastic technology change in the telecommunications industry. Our capabilities lie in designing, manufacturing, trading and services to enable the full value of connectivity.


High Performance Factory Supply SMA-Female 50W 2-4GHz 10dB 30dB 40dB RF Bi-Directional Coupler for in-Building Solutions From Topwave Telecommunication Systems

In-building DAS Communication

Components for in-building DAS Communication System


Hefei Topwave Telecom Co., Ltd also provides antennas and other RF components for base stations. Our solutions include a comprehensive site survey, design, installation, integration and maintenance, as well as walk testing and proper labeling to identify faulty antennas during maintenance.

We can meet all your needs to support these advanced in-building communication systems. Partner with us for DAS installation for Indoor and Outdoor Solutions where confined areas require radio coverage for single or multiple services. Topwave Telecom, your trusted strategic business partner, your RF expert in telecommunication.


High Performance Factory Supply SMA-Female 50W 2-4GHz 10dB 30dB 40dB RF Bi-Directional Coupler for in-Building Solutions From Topwave Telecommunication Systems



FAQ



High Performance Factory Supply SMA-Female 50W 2-4GHz 10dB 30dB 40dB RF Bi-Directional Coupler for in-Building Solutions From Topwave Telecommunication Systems

Q: Can I get smaples for validation test?
A: Let's talk, some samples are free but shipping charge should be on your account.

Q: What is your MOQ?
A: We don't have MOQ limit.

Q: What is your payment terms?
A: We accept Western Union, T/T, Paypal and so on.

Q: What is your delievry time?
A: Normally around 2 weeks, TBD for massive quantity or customized products.
