Basic Info.
Model NO.
BIT-Ma-GS-2.0-0404
Sound Channel
2
FM
Without FM
HDMI Quantity
4
Certification
FCC, CE, GS
Model Number
Bit-Ma-GS-2.0-0404
Input Line Length
30 Meters
Control Method
IR
Resolution
4K * 2K
Transport Package
Standard Packaging
Specification
54X36X16 cm
Trademark
Bitvisus
Origin
Guangdong, China
HS Code
8543709990
Production Capacity
50pieces/7day
Product Description
https://bitvisus.en.made-in-china.com/product-list-1.htmlBIT-Ma-GS-2.0-0404
| Model | GS Matrix |
| Input the highest supported resolution | 3840*2160@60Hz |
| Maximum supported bandwidth | 18Gbps |
| HDMI version | HDMI2.0x4 |

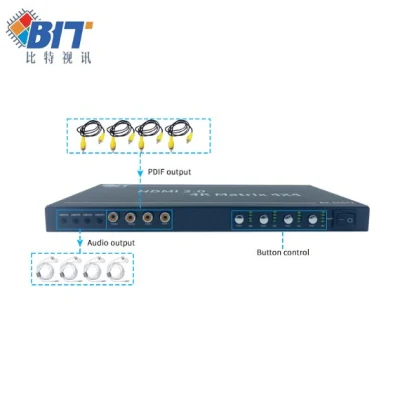

| Audio output | HDMI, 3.5mm headphone holder |
| way to control | Button, infrared remote control, RS232 |
| Product factory default resolution | 3840*2160@30Hz |
| Operating temperature | 0ºC-50ºC |
| Rated power | 12W |
| Chassis size (WxDxH) | 270mm*122.5mm* 20.5mm |
| Warranty | 1 year |
| power supply | 12V@2AAC-DC |
FAQ
Q:Are you factory or trading company?
A:We are a factory, located in Shenzhen China.
Q:What are your main products?
A:HDMI matrix switcher, HDMI video wall controller, video wall processor, spliter, extender.
Q:Can I get some samples?
A:We are honored to offer you samples , but sample charge is required.
Q:Can you make the processor as our requirement?
A:No problem, we have professional engineer teams to make customized processor.
Q:May I inspect before delivery ?
A: Yes, welcome to inspect before delivery.
Shenzhen Biteshixun Co.,Ltd.(Bitvisus) is a leading enterprise focusing on the development,production and sales of series products with FPGA image processing technology and high-definition audio and video signal transmission as the core.Our main series products include TV Video Wall Controller,Splicing Processor,Multi Screen Extender,Image Processor,HDMI Matrix Switcher,HDMI Splitter,HDMI Extender,DVI Extender,HDMI Optical Fiber Transmitter,DVI Optical Fiber Transmitter,KVM Extender,etc.
