LMR100 LMR 200 LMR 300 LMR400 LMR600 Copper 5D-Fb Coaxial Cable

LMR100 LMR200 LMR300 LMR400 LMR600 Copper 5D-Fb Coaxial Cable - Factory direct pricing on high-quality coaxial cables. Shop now for superior performance and durability.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
5d-fb coaxial cable
Wire Core Material
Bare Copper Wire
Certification
CE, ISO, RoHS
Model
MHYV-xx
Brand
OEM
Cable Conductor
1.80mm
Applications
Multimedia
Standard
Mil-C-17
Transport Package
Roll,Wooden Spool,Plastic Reel,Gift Box,Pully Box
Specification
305m/roll
Trademark
FUU
Origin
Made in China
HS Code
8544200000
Production Capacity
3000km/Month

Product Description

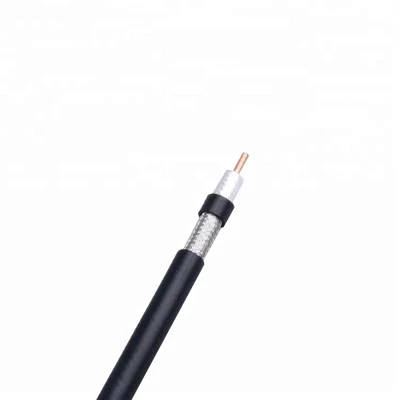

LMR100 LMR 200 LMR 300 LMR400 LMR600 Copper 5D-Fb Coaxial Cable

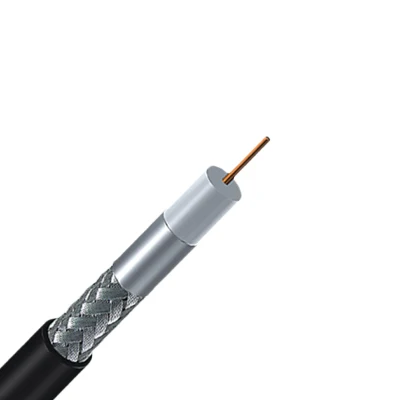

LMR100 LMR 200 LMR 300 LMR400 LMR600 Copper 5D-Fb Coaxial Cable

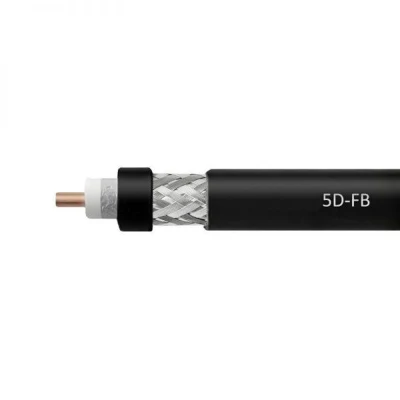

lmr100 LMR 200 LMR 300 LMR400 LMR600 copper 5d-fb coaxial cable



Specification & Constructure

1) Construction
Center Conductor: 1.80 Solid Bare Copper Clad Aluminum or BC
Dielectric: 5.80mm foam PE
Shield: Boned APA (double Aluminum foil)
Braid Coverage: 85% Tinned Copper wires
Jacket: 7.50mm PVC


2) Characteristics
Sparker Test: 2000VAC
Dielectric Strength: Conductor to Shield: 3 Sec. @10000 VDC
Impedance: 50+3Ohm
Capacitance: 29.5+3pF/Ft (Nom. )
Velocity of Propagation: 87%
DCR: Conductor: 1.87 ohms/1000Ft
SRL: 15dB (10 to 300 MHz) Swept Tested
Shielding effectiveness dB> 90

3) Packing
1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll,
300yard/roll. Other lengths according to client's request.
2) Inner packing: Wooden reel, plastic reel, and paper reel.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request

4) Applications:
@ Wireless Local Loop (WLL)
@ Land Mobile Radio (LMR)
@ AP, Bridges or CPE
@ Local MultiPoint Distribution System (LMDS)
@ MMDS
@ Personal Communication Systems (PCS)
@ Indoor or Outdoor Use
@ Direct Bury or Tower Use
@ Fixed Wireless
@ GPS WLAN WISP SCADA

5) Attenuation Sheet @ 20 degree

Attenuation at typical frequencies(dB/ 100m)
50MHz 450MHz 900mhz 1500MHz 1800MHz 2500MHz
2.9 8.9 12.8 16.7   18.6 22.4

Factory photos and production process

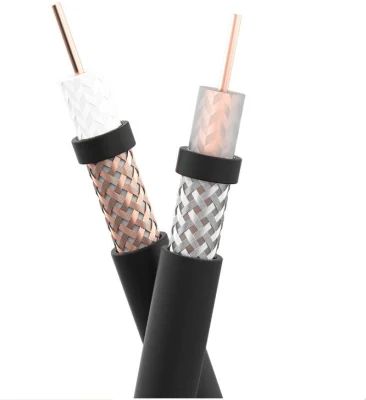

LMR100 LMR 200 LMR 300 LMR400 LMR600 Copper 5D-Fb Coaxial Cable
LMR100 LMR 200 LMR 300 LMR400 LMR600 Copper 5D-Fb Coaxial Cable
LMR100 LMR 200 LMR 300 LMR400 LMR600 Copper 5D-Fb Coaxial Cable

Our Service:

   1) Quick Response --All inquiries will be replied within 24 hours.
   2) Professional Quotation --All prices will be quote according to customers' detailed
   specifications & requirements.
   3) OEM & ODM Service
   4) Can print your own brand on the jacket printing with foot or meter marking.
   5) Make customized designs for stickers, drums, outer cartons, etc.
   6) Stable Quality --All materials and products passed restrict QC procedures,comply with
   international standards.
   7) Fast Delivery --LCL orders,15days after confirmation; FCL orders, 20 days after
   Confirmation in usual.

Good After-sales Service
--We chose the fastest vessel to POD for delivery our goods to clients,
--All Documents will be issued according to clients' instructions, to save troubles from local customs.
--Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients.

FAQ:

Q1: What kind of cable do you produce?
A: We specialized in producing Coaxial Cable,Network Cable,Patch Cord,CCTV Cable,Optical Fiber Cable, Speaker Cable,Alarm Cable,Telephone Cable,Drop Wire,Audio Cable,HDMI Cable,Control Cable etc
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc

Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.

Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.

Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.

Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term

Q6: Where is your factory located? How can I visit there?
A: Our factory is located in Lin'An HangZhou City,ZheJiang Province,China.
1 hour drive from HangZhou XiaoShan International Airport
3 hours drive or 1 and half an hour by high speed rail to railway station from shanghai or Ningbo
LMR100 LMR 200 LMR 300 LMR400 LMR600 Copper 5D-Fb Coaxial Cable LMR100 LMR 200 LMR 300 LMR400 LMR600 Copper 5D-Fb Coaxial Cable LMR100 LMR 200 LMR 300 LMR400 LMR600 Copper 5D-Fb Coaxial Cable LMR100 LMR 200 LMR 300 LMR400 LMR600 Copper 5D-Fb Coaxial Cable

LMR100 LMR 200 LMR 300 LMR400 LMR600 Copper 5D-Fb Coaxial Cable
