Nyy Building Wire UTP STP FTP SFTP CCTV Sheild Communication Rg59 RG6 Rg11 Rg174 Rg58 Rg213 Coaxial Cable

Get high-quality Nyy Building Wire, UTP, STP, FTP, SFTP, CCTV, Shield Communication, RG59, RG6, RG11, RG174, RG58, RG213 Coaxial Cable from our factory. Best prices guaranteed!
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
Control Cable
Material Shape
Round Wire
Certification
ISO9001, CE, CCC, RoHS, VDE
Model Number
Coaxial Cable
Insulation Resistance
200
Installation Temperature
-5 ~60
Keywords
0.6/1 Kv
Warranty
25years
Transport Package
Standard Exported Package
Specification
copper/pvc/flexible
Trademark
fengda
Origin
China
HS Code
8544
Production Capacity
80000 Meter/Meters Per Month

Product Description

Flat Wire Power Cord Portable Cord Spt Cable and Wire Spt-2 Work with Zip Plugs Coaxial cable

Introduction
1 Can be customized according to requirements.
2 Independent brand recruitment agency.
3 High quality, ISO 9001, CCC, CE, RoHS certified.
4 ODM&OEM is available.


Nyy Building Wire UTP STP FTP SFTP CCTV Sheild Communication Rg59 RG6 Rg11 Rg174 Rg58 Rg213 Coaxial CablePerformance:

1) Rated voltage: 300/600V;
2) Insulation Resistance:  200MΩ·km
3) Ambient Temperature: -20ºC~75ºC
4) Installation Temperature: -5ºC~60ºC

Application:

Coaxial cable is used as a transmission line for radio frequency signals. Its applications include feedlines connecting radio transmitters and receivers to their antennas, computer network (e.g., Ethernet) connections, digital audio (S/PDIF), and distribution of cable television signals.


RG58

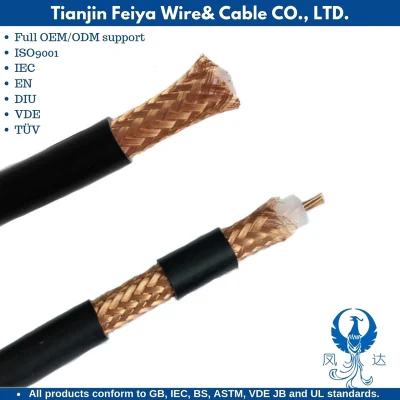

Nyy Building Wire UTP STP FTP SFTP CCTV Sheild Communication Rg59 RG6 Rg11 Rg174 Rg58 Rg213 Coaxial Cable
RG213

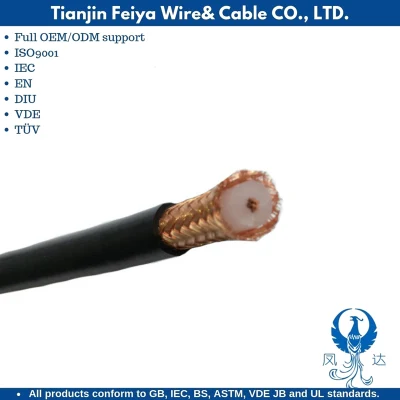

Nyy Building Wire UTP STP FTP SFTP CCTV Sheild Communication Rg59 RG6 Rg11 Rg174 Rg58 Rg213 Coaxial Cable


Cable Type RG58A/U RG58/U RG58C/U
Inner Conductor Tinned/Plain Copper 19*0.18mm φ0.80mm 19*0.18mm
Dielectric Low Density PE φ2.95mm φ2.95mm φ2.95mm
Outer Conductor(Shield) Tinned Copper 144*0.10mm 112*0.13mm 112*0.13mm
Shield Coverage   93% 95% 95%
Sheath PVC/LSZH φ5.00mm φ5.00mm φ5.00mm

Cable Type RG58A/U RG58/U RG58C/U
Impedance 50±3 Ohm 50±3 Ohm 50±3 Ohm
Nominal Capacitance 100 pF/m 94 pF/m 100 pF/m
Velocity of Propagation 66% 66% 66%
Insulation Resistance >2000 Mohm. Km >2000 Mohm. Km >2000 Mohm. Km
Inner  Resistance 37.5 Ohm/Km 35.0 Ohm/Km 37.5 Ohm/Km
Outer Conductor Resistance 17 Ohm/Km 16.5 Ohm/Km 16.5Ohm/Km
Test/Operating Voltage(Max)   5KV/2KV 5KV/2.5KV
Operating Temperature Range -30ºC~+70ºC -30ºC~+70ºC -30ºC~+70ºC
Screening Effectiveness(100-900MHz) >55 dB >55 dB >55 dB

Return Loss RG58A/U RG58/U RG58C/U
30-300 MHz ≥27 dB ≥26 dB ≥27 dB
300-600 MHz ≥23dB ≥25dB ≥23dB
600-900 MHz ≥22 dB ≥24 dB ≥22 dB

Frequency(MHz) Attenuation(dB/100m) Attenuation(dB/100ft)
RG58A/U RG58/U RG58C/U RG58A/U RG58/U RG58C/U
50 9.7 9.1 10.8 2.96 2.77 3.29
100 13.9 13.1 16 4.24 3.99 4.88
200 20.4 19.4 24 6.22 5.91 7.32
400 30 28.4 37.7 9.15 8.66 11.49
500 34.2 32.2 41.3 10.43 9.82 12.59
600 37.9 35.7 49.7 11.55 10.88 15.15
860 46.9 44.8 64.2 14.3 13.66 19.57
1000 51.8 49 70 15.79 14.94 21.34

Cable Type RG213
Conductor Material BC
Nom.Dia. 7*0.75mm(2.25mm)
Dielectric Material PE
Nom.Dia. 7.24mm
Shield 1 Braiding 240*0.13 BC-93%
Shield 2 Braiding /
Jacket Material PVC/PE
Nom.Dia. 10.3±0.10mm

Cable Type RG213
Impedance 50±3 Ohm
Nominal Capacitance 100 pF/m
Velocity of Propagation 66%
Insulation Resistance >2000 Mohm. Km
Inner  Resistance 6 Ohm/Km
Outer Conductor Resistance 7 Ohm/Km
Operating Temperature Range -30ºC~+70ºC
Screening Effectiveness >55 dB

Return Loss RG213
30-300 MHz ≥31 dB
300-600 MHz ≥28 dB
600-900 MHz ≥27 dB

Frequency(MHz) Attenuation(dB /100m) Attenuation(dB /100ft)
50 4.50 1.37
100 6.80 2.07
200 10.00 3.05
400 14.50 4.42
500 16.40 5.00
600 18.10 5.52
860 22.50 6.86
1000 24.70 7.53

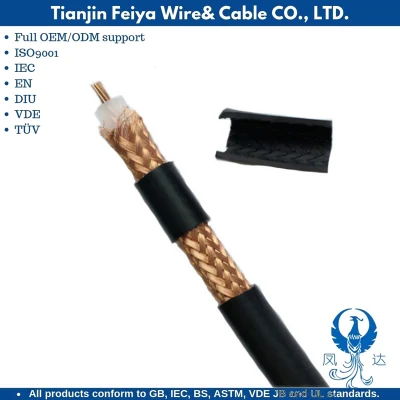

Nyy Building Wire UTP STP FTP SFTP CCTV Sheild Communication Rg59 RG6 Rg11 Rg174 Rg58 Rg213 Coaxial Cable

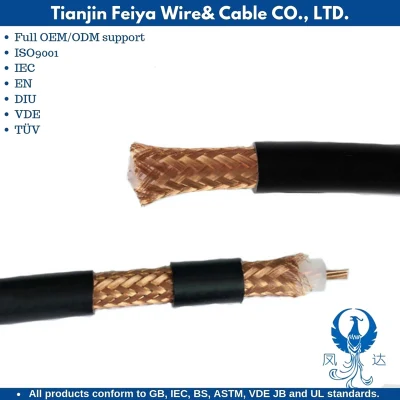

Nyy Building Wire UTP STP FTP SFTP CCTV Sheild Communication Rg59 RG6 Rg11 Rg174 Rg58 Rg213 Coaxial Cable
Nyy Building Wire UTP STP FTP SFTP CCTV Sheild Communication Rg59 RG6 Rg11 Rg174 Rg58 Rg213 Coaxial Cable Nyy Building Wire UTP STP FTP SFTP CCTV Sheild Communication Rg59 RG6 Rg11 Rg174 Rg58 Rg213 Coaxial Cable

FAQ

Q: Is small order less than 100pcs accepted?
A: Yes, please contact with us, we will send you link for small order.

Q:  How to ship the order? Is it Safe?
A: Heavy goods are transported by container, sea or air to the designated port. For small packages, recommend sending by express, such as DHL, FEDEX, UPS, TNT, EMS, ect which are door to door service.

Q: What is your terms of payment?
A: Payment terms are flexible, T/T, Paypal, L/C, D/A, D/P, Western Union, Money Gram etc. And you can pay on Alibaba with your credit card.

Q: What is your working time?
A: From 8AM to 8PM Monday noon to Sunday noon. Please feel free to contact us. Our sales staff is on a rotation basis. The customer service is available 24 hours a day, checking customer emails, responding to customer questions and messages, and providing the most convenient service for each customer.
