Basic Info.
Model NO.
SMA-KKJ
VSWR
≤1.10@DC-3GHz;≤1.20@3-6GHz;
Medium Pressure
1000V
Characteristic Impedance
50ohm
Frequency Range
DC-12.4GHz
Insulating Material
PTFE
Material
Brass
Plating
Gold
Interface
IEC 60169-15
RoHS Compliant
Yes
Working Vlotage
335V RMS,50Hz,at Sea Level
Transport Package
Carton
Specification
30cm x 22cm x 26cm
Origin
Zhenjiang, Jiangsu, China
HS Code
8536909000
Production Capacity
200000 Pieces/Year
Product Description

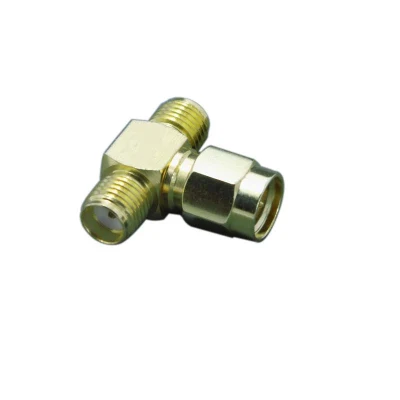

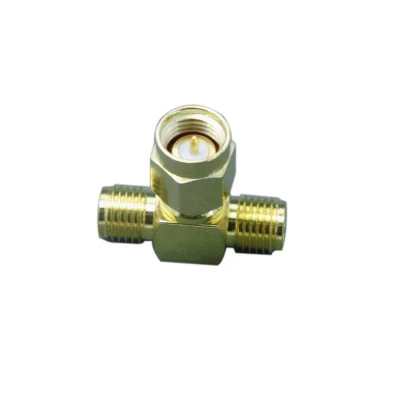

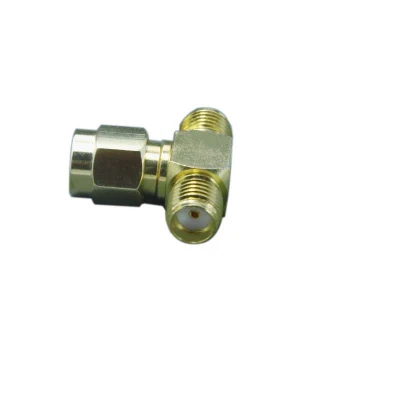

SMA Female To SMA Female To SMA Male T Shape Connector Adaptor
| Model No. | SMA-KKJ | |
| Interface | IEC 60169-15 | |
| Electrical | ||
| Characteristic Impedance | 50ohm | |
| Frequency Range | DC-12.4GHz | |
| VSWR | ≤1.10@DC-3GHz;≤1.20@3-6GHz; | |
| Dielectric Withstanding Voltage | ≥1000V RMS,50Hz,at sea level | |
| Working Vlotage | 335V RMS,50Hz,at sea level | |
| Dielectric Resistance | ≥5000MΩ | |
| Contact Resistance | Center Contact ≤3mΩ | Outer Contact ≤2.5 mΩ |
| Mating | - | |
| Mechanical | ||
| Durability | Mating cycles ≥500 | |
| Material and Plating | ||
| Parts Name | Material | Plating |
| Body | Brass | Au |
| Insulator | PTFE | - |
| Center conductor | Phosphor copper | Au |
| Coupling nut | Brass | Au |
| Gasket | Silicone rubber | - |
| Environmental | ||
| Operating Temperature Range | -45 ºC~-85 ºC | |
| RoHS Compliant | Yes | |
