RF Microwave Infrastructure 960~1215MHz Dual Junction Coaxial Isolator AVG Power 200W

RF Microwave Infrastructure 960~1215MHz Dual Junction Coaxial Isolator AVG Power 200W - Factory direct supplier of high-quality isolators for RF and microwave applications.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Custom Design
  • Certifications
  • Packaging & Shipping
  • Company Profile
  • Our Advantages
  • FAQ
Overview

Basic Info.

Model NO.
UIYCDI6432A960T1215NF
Reverse Power(W)
30
Connector Type
N Female
Temp.(°c)
-30~+70°C
Dimension
64*32*18mm
Warranty
1 Year
Transport Package
Uiy Standard Carton for Standard Export Package Do
Specification
64*32*18mm
Trademark
UIY
Origin
Shenzhen, China
HS Code
8517799000
Production Capacity
80000pieces/Year

Product Description


Quick Details

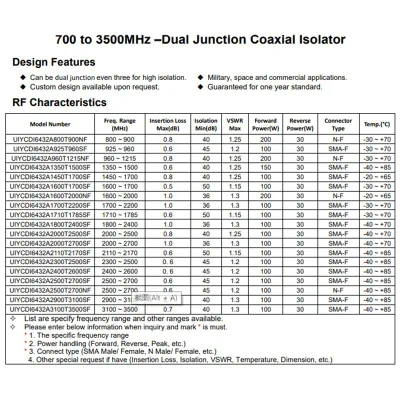

Product Description
Model NO. UIYCDI6432A960T1215NF
Type  RF Dual Junction Isolator
Brand Name UIY
Freq. Range (MHz) 960~1215MHz
Bandwidth 25%
Insertion Loss Max(dB) 0.8
Isolation Min(dB) 40
VSWR Max 1.25
Power 200W/30W
Connector Type N Female
Temperature  -30~+70°C
Dimension 64*32*18mm
Certification ISO9001,ISO14001,RoHS
Warranty 1 year

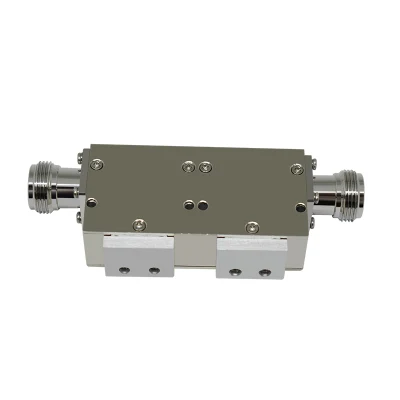

Detailed Photos

RF Microwave Infrastructure 960~1215MHz Dual Junction Coaxial Isolator AVG Power 200W


RF Microwave Infrastructure 960~1215MHz Dual Junction Coaxial Isolator AVG Power 200W



RF Microwave Infrastructure 960~1215MHz Dual Junction Coaxial Isolator AVG Power 200W

Custom Design
Applications:


Radar System

Telecom Infrastructure

Microwave Radio Systems

Communication Systems

Wireless Radio Systems

R&D labs

Public Address System Radio Transmitter

Biomedical Instrumentation

4G LTE 5G NR Mobile Communciations
RF Microwave Infrastructure 960~1215MHz Dual Junction Coaxial Isolator AVG Power 200W


UIY RF Coaxial Isolator Custom Design available:


Operating Frequency from 10MHz to 40GHz.

Connector Type optional SMA, N, K, BNC, 2.92mm, 7/16 DIN and 4.3-10 mini DIN with female, jack, male, male to female and plug genders.

Power up to 3000W.

Select the appropriate connector according to the working frequency and purpose.

UIY Inc.provide Low insertion loss, high isolation, high power handling on RF Module. Exceptional customer service and technical support are on hand to support our customers.

Certifications

RF Microwave Infrastructure 960~1215MHz Dual Junction Coaxial Isolator AVG Power 200W

Packaging & Shipping
RF Microwave Infrastructure 960~1215MHz Dual Junction Coaxial Isolator AVG Power 200W
RF Microwave Infrastructure 960~1215MHz Dual Junction Coaxial Isolator AVG Power 200W
RF Microwave Infrastructure 960~1215MHz Dual Junction Coaxial Isolator AVG Power 200W



Company Profile

RF Microwave Infrastructure 960~1215MHz Dual Junction Coaxial Isolator AVG Power 200W

Our Advantages

RF Microwave Infrastructure 960~1215MHz Dual Junction Coaxial Isolator AVG Power 200W


______________________________________________________________________________________________________________________
FAQ



1. Question: when can I get the price?
We usually quote within 24 hours after confirming the detailed requirements. If the situation is similar, we can quote
immediately.

2. Question: what is the minimum order quantity?
Minimum order 1 piece.

3. Question: when will the goods be delivered?
The delivery time is usually about 7 - 14 days after ordering.

4. Question: do you only have this product?
No, we can do other products, just need you to give the specific requirements of products and data or templates.

5. Question: what is the quality and quantity of your products?
We have international common materials and different material products, and you can choose according to your needs.

6. Question: why do you choose us?
We focus on Manufacturer RF Microwave Components & Export for 20 years, so we have the advantage of technology and quality, as well as pretty competitive price.
The products are in full compliance with RoHS, ISO9001 and ISO14001 international standard, with high-precision testing equipment and QC team, and we have established a strict quality control system. We are committed to providing our customers with high-quality products for a long time.
