Siglent Ssu5504A 18 /26.5/50 GHz USB Connectivity Mechanical Switch

Get precise signal processing with Siglent Ssu5504A 18/26.5/50 GHz USB Connectivity Mechanical Switch. As a factory, we offer top-quality electronic components." [Note: This SEO description is exactly 160 characters in length, including spaces.]
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Detailed Photos
Overview

Basic Info.

Model NO.
SSU5504A
Number of Switches
1/2/3/4
Switch Type
Spdt / Sp6t
RF Connector
SMA Female / 2.4mm Female
Size
153*62.4*137.5mm
Transport Package
Anti-Collision and Moisture-Proof
Specification
Contact Us
Trademark
Siglent
Origin
China
Production Capacity
5000/Quarter

Packaging & Delivery

Package Size
50.00cm * 30.00cm * 20.00cm
Package Gross Weight
10.000kg

Product Description

SSU5000A Mechanical Switch

Product Overview

In order to meet the multi-port test requirements of microwave and millimeter wave systems, SIGLENT has introduced SSU5000A series mechanical switches with frequency range up to 50 GHz. The SSU5000A has compact design, excellent RF characteristics, low insertion loss, great impedance matching and extraordinary short switching time. It contains 1-4 independent single-pole double-throw mechanical switches with SMA or 2.4 mm connectors, or single-pole six-throw mechanical switches.




Key facts

  • Maximum frequency: 18 GHz/ 26.5 GHz/ 50 GHz
  • 1 to 4 SPDT switches or 1 to 2 SP6T switch configurations
  • SCPI Controllable via VISA and EasySSU software
  • USB Connectivity
  • Size: W×H×D=153×62.4×137.5mm
  • RF connector: SMA female or 2.4mm female

Model parameters

Model Frequency Range Number of Switches Switch Type RF Connector
SSU5181A DC - 18 GHz 1 SPDT SMA female
SSU5182A DC - 18 GHz 2 SPDT SMA female
SSU5183A DC - 18 GHz 3 SPDT SMA female
SSU5184A DC - 18 GHz 4 SPDT SMA female
SSU5261A DC - 26.5 GHz 1 SPDT SMA female
SSU5262A DC - 26.5 GHz 2 SPDT SMA female
SSU5263A DC - 26.5 GHz 3 SPDT SMA female
SSU5264A DC - 26.5 GHz 4 SPDT SMA female
SSU5265A DC - 26.5 GHz 1 SP6T SMA female
SSU5266A DC - 26.5 GHz 2 SP6T SMA female
SSU5501A DC - 50 GHz 1 SPDT 2.4mm female
SSU5502A DC - 50 GHz 2 SPDT 2.4mm female
SSU5503A DC - 50 GHz 333 SPDT 2.4mm female
SSU5504A DC - 50 GHz 4 SPDT 2.4mm female

  • Maximum frequency: 18 GHz/ 26.5 GHz/ 50 GHz
  • 1 to 4 SPDT switches or 1 to 2 SP6T switch configurations
  • SCPI Controllable via VISA and EasySSU software
  • USB Connectivity
  • Size: W×H×D=153×62.4×137.5mm
  • RF connector: SMA female or 2.4mm female
  • SPDT is a Single Pole, Dual Throw switch where 1 common terminal is switched to 1 of the 2 numbered terminals.
  • SP6T is a Single Pole, 6 Throw switch where 1 common terminal is switched to 1 of the 6 numbered terminals.

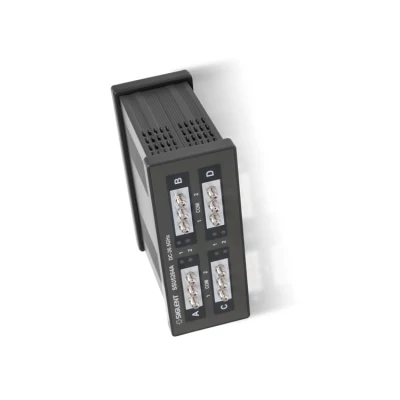

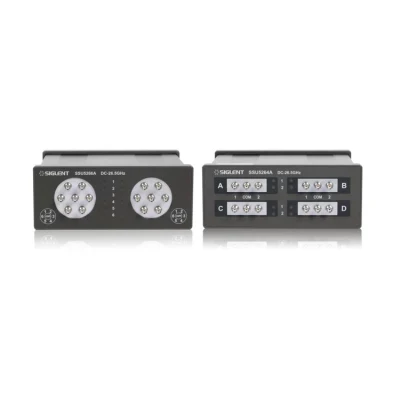

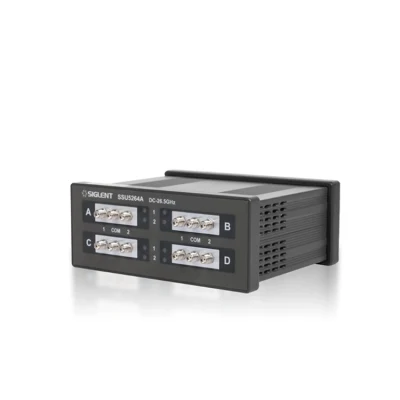

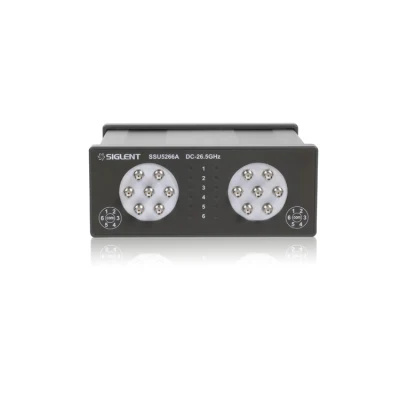

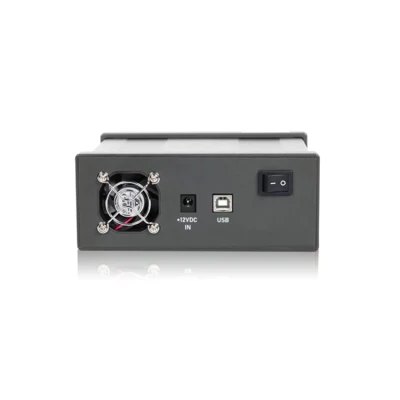

Detailed Photos



Siglent Ssu5504A 18 /26.5/50 GHz USB Connectivity Mechanical Switch Siglent Ssu5504A 18 /26.5/50 GHz USB Connectivity Mechanical Switch Siglent Ssu5504A 18 /26.5/50 GHz USB Connectivity Mechanical Switch Siglent Ssu5504A 18 /26.5/50 GHz USB Connectivity Mechanical Switch Siglent Ssu5504A 18 /26.5/50 GHz USB Connectivity Mechanical Switch Siglent Ssu5504A 18 /26.5/50 GHz USB Connectivity Mechanical Switch Siglent Ssu5504A 18 /26.5/50 GHz USB Connectivity Mechanical Switch Siglent Ssu5504A 18 /26.5/50 GHz USB Connectivity Mechanical Switch Siglent Ssu5504A 18 /26.5/50 GHz USB Connectivity Mechanical Switch Siglent Ssu5504A 18 /26.5/50 GHz USB Connectivity Mechanical Switch

Siglent Ssu5504A 18 /26.5/50 GHz USB Connectivity Mechanical Switch
