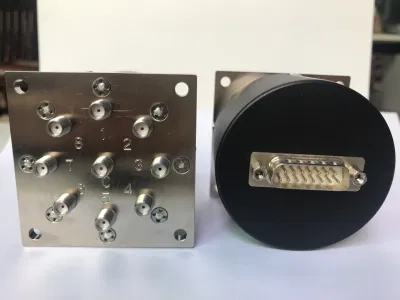

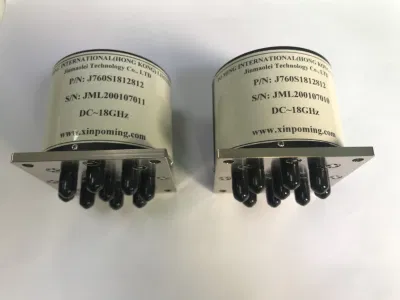

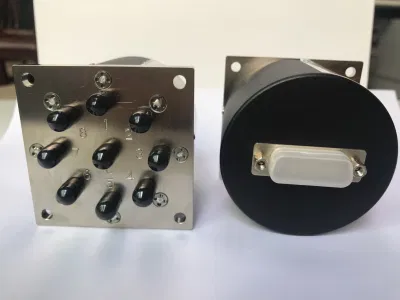

Sp7t/Sp8t Stainless Steel Passivated Coaxial RF Switch with N Connector, 12.4G/18g Failsafe/Latching

Looking for a reliable Sp7t/Sp8t Stainless Steel Passivated Coaxial RF Switch with N Connector, 12.4G/18g Failsafe/Latching? Look no further! We are a factory offering top-quality products.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
SP7T-N
Materials
Stainless Steel
Standard
SMA Connector
Frequency
DC - 18GHz
Actuator Voltage
12V/24V/28V
Position Numbers
7/8
Ttl Options
with/Without
Pin Options
Solder Pins/D-SUB 15 Pins
Vswr (Max.)
1.3/1.4/1.5
Insertion Loss (Max)dB
0.3/0.4/0.5
Isolation (Min)dB
80/70/60
Impedance
50 Ohm
Switching Time(Max)
< 15 Ms
Connector
SMA-Female
Temperature Range
-25 to +65
Operation Life (Cycles)
1, 000, 000(Standard)
Vibration (Operating)
10g RMS, 20-2000Hz
Mechanical Shock (Non-Operating)
50g, 1/2sine, 11msec
Transport Package
Cartons
Specification
none
Trademark
JML
Origin
Shenzhen, Guangdong, China
HS Code
8536500000
Production Capacity
5000 Piece Per Month

Product Description

Technical Parameters.
In order to give you the best price, please kindly specify your requirements as clearly as possible.
OEM and ODM is welcome, we have professional and experienced engineer team for you.

Features:

  • High Performance
  • High Reliability
  • Low Insertion Loss
  • High Isolation

Applications:

  • Radar Systems
  • Communication Systems
  • Receiving Systems
Sp7t/Sp8t Stainless Steel Passivated Coaxial RF Switch with N Connector, 12.4G/18g Failsafe/Latching


Part Number Selection:
Sp7t/Sp8t Stainless Steel Passivated Coaxial RF Switch with N Connector, 12.4G/18g Failsafe/Latching


Electrical Specification:

Numbers of Frequency Range VSWR Insertion Loss Isolation Impedance
Positions (GHz) (max.) (max)dB (min)dB (Ω)
7-8 DC-6 1.30 0.3 80 50
6-12.4 1.40 0.4 70
12.4-18 1.50 0.5 60
Parameter Min. Typ. Max Units

TTL input
High Level 2.2 to 5.5V(TTL Option)
Vdc
  Low Level 0 to 0.8V(TTL Option)
Switching time(max) 20 ms
Connector SMA-Female
Temperature Range -25 to +65 0C
Operation Life (cycles) 1,000,000(Standard)
Vibration (operating) 10G RMS, 20-2000Hz
Mechanical Shock (non-operating) 50G, 1/2Sine, 11msec
Weight(approx.) 285 g

Sp7t/Sp8t Stainless Steel Passivated Coaxial RF Switch with N Connector, 12.4G/18g Failsafe/Latching

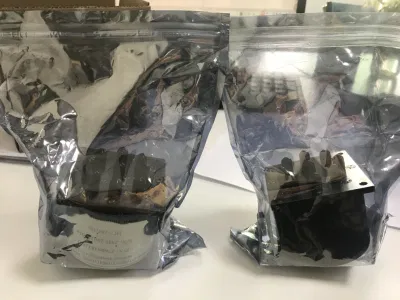

Package and Shipment Details:
1) Neutral Master Carton Package;
2) Customized Package;
Sp7t/Sp8t Stainless Steel Passivated Coaxial RF Switch with N Connector, 12.4G/18g Failsafe/Latching


Product Equipment Line:
Sp7t/Sp8t Stainless Steel Passivated Coaxial RF Switch with N Connector, 12.4G/18g Failsafe/Latching

Quality Controls:

With more than 10 years experience, we produce A-Grade voltage stabilizer/regulator and can offer OEM & ODM service.
All our products have CE certificate and some have obtained patent.
Sp7t/Sp8t Stainless Steel Passivated Coaxial RF Switch with N Connector, 12.4G/18g Failsafe/LatchingSp7t/Sp8t Stainless Steel Passivated Coaxial RF Switch with N Connector, 12.4G/18g Failsafe/Latching
About us

Shenzhen Xin Poming Power Equipment Manufacturing Co., Ltd is established in Guangdong Province of China in 2007, which manufactures and sells voltage regulators, transformers, UPSs, frequency converter, DC power sources and other power products and can provide systemic power solutions for customers with it's complete product list For clients around the world .

Sp7t/Sp8t Stainless Steel Passivated Coaxial RF Switch with N Connector, 12.4G/18g Failsafe/Latching


Clients
Sp7t/Sp8t Stainless Steel Passivated Coaxial RF Switch with N Connector, 12.4G/18g Failsafe/Latching

FAQ(Frequent Asked Qestions)

Q: What RF switch configurations are available?

A: Below are our popular configurations for your reference, besides, we accept customization.

Electro-mechanical switches: 1P2T (single-pole, double-throw); 1P3T; 1P4T; 1P6T; 1P8T; 1P12T

Solid-state switches: 1P1T; 1P2T; 1P3T; 1P4T; 1P6T; 1P8T; 1P10T; 1P12T; 1P16T

Q: What control options are available?

A: Depending on model, EM RF switches offer TTL logic-level control, or +12, +15 or +28 V DC control. Solid-state switches use TTL logic levels, and one model has a USB interface.

Q: Are the RF switch attenuators bi-directional?

A: All of XINPOMING's RF switches are bi-directional unless noted differently on the specification sheet.

Q: I need a custom RF switch designed. How much are your typical NREs (non-recurring engineering charges)?

A: XINPOMING does not charge NREs. Please send your custom requirement to us for details communication.

Q: Are your 18GHz electro-mechanical switches available with indicators or as latching?

A: Typical options: latching, self-terminating, indicators, TTL, RoHS and non-RoHS.


You're welcomed to contact us for any questions.
