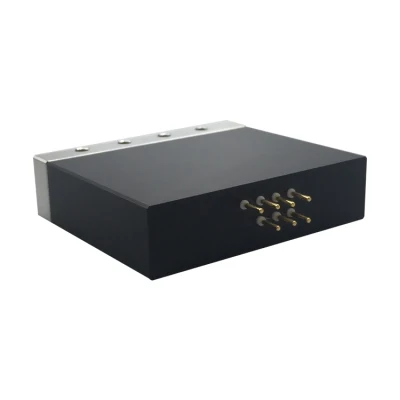

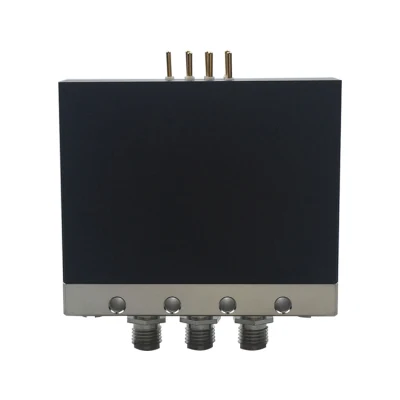

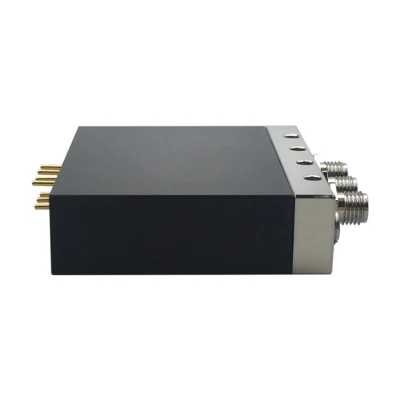

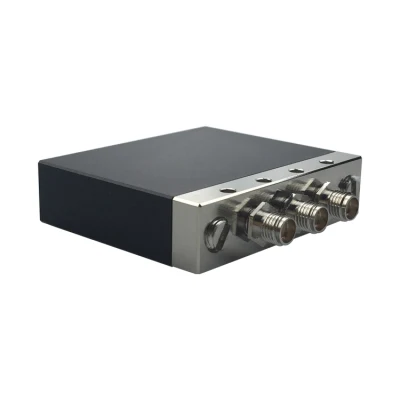

Spdt-SMA RF Coaxial Electromechanical Switch for Telecommunication/Statellite Field

Get high quality SPDT-SMA RF Coaxial Electromechanical Switch for Telecommunication/Satellite Field. We are a factory with competitive pricing.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
SPDT-SMA
Impedance
50 Ohm
Switching Time(Max)
< 20 Ms
Connector
N-Female
Temperature Range
-25 to +65
Operation Life (Cycles)
1, 000, 000(Standard)
Vibration (Operating)
10g RMS, 20-2000Hz
Mechanical Shock (Non-Operating)
50g, 1/2sine, 11msec
Transport Package
Polyfoam Packaging & White Box
Trademark
JML
Origin
Shenzhen, Guangdong, China
Production Capacity
2000 Piece Per Mother

Product Description

Technical Parameters.
In order to give you the best price, please kindly specify your requirements as clearly as possible.
OEM and ODM is welcome, we have professional and experienced engineer team for you.

SPDT-SMA Series

N type single pole double throw radio frequency electromechanical switch

SPDT RF coaxial electromechanical switches with RF interface type SMA connector have excellent reliability, high performance. It can switch one signal from the common port to one of the other two output ports, working from DC to 18GHz. Widely used in RF measurement, testing, broadband wireless communications, and automated test equipment.

Model selection

Connector Frequency  Type
S:SMA Female  3: up to 3GHz  1:Failsafe
6: up to 6GHz  2: Latching
18:up to 18GHz
Actuator Voltage  TTL Options  Options
2: 12V  0: without TTL  0: Solder pins
3: 24V  1: with TTL(high level)

Electrical properties

Connector  Frequency VSWR Insertion loss Isolation Impedance
(GHz)  (max)  (max)dB  (min)dB  (Ω)
DC~3 1.20 0.20 85 50
3~6 1.30 0.30 80
6~12.4  1.40 0.40 70
12.4~18  1.50 0.50 60

General specification
General specification
TLL input High level 2.5 to 5.5 Volts
Low level 0 to 0.8 Volts
Switching time(maximum) ms  20
Working temperature -400C~+850
Storage temperature  -550C~+850
Life span 3.5 million times


Package and Shipment Details:
1) Neutral Master Carton Package;
2) Customized Package;
Spdt-SMA RF Coaxial Electromechanical Switch for Telecommunication/Statellite Field


Product Equipment Line:
Spdt-SMA RF Coaxial Electromechanical Switch for Telecommunication/Statellite Field

Quality Controls:

With more than 10 years experience, we produce A-Grade voltage stabilizer/regulator and can offer OEM & ODM service.
All our products have CE certificate and some have obtained patent.
Spdt-SMA RF Coaxial Electromechanical Switch for Telecommunication/Statellite FieldSpdt-SMA RF Coaxial Electromechanical Switch for Telecommunication/Statellite Field
About us

Shenzhen Xin Poming Power Equipment Manufacturing Co., Ltd is established in Guangdong Province of China in 2007, which manufactures and sells voltage regulators, transformers, UPSs, frequency converter, DC power sources and other power products and can provide systemic power solutions for customers with it's complete product list For clients around the world .

Spdt-SMA RF Coaxial Electromechanical Switch for Telecommunication/Statellite Field


Clients
Spdt-SMA RF Coaxial Electromechanical Switch for Telecommunication/Statellite Field

FAQ(Frequent Asked Qestions)

Q: What RF switch configurations are available?

A: Below are our popular configurations for your reference, besides, we accept customization.

Electro-mechanical switches: 1P2T (single-pole, double-throw); 1P3T; 1P4T; 1P6T; 1P8T; 1P12T

Solid-state switches: 1P1T; 1P2T; 1P3T; 1P4T; 1P6T; 1P8T; 1P10T; 1P12T; 1P16T

Q: What control options are available?

A: Depending on model, EM RF switches offer TTL logic-level control, or +12, +15 or +28 V DC control. Solid-state switches use TTL logic levels, and one model has a USB interface.

Q: Are the RF switch attenuators bi-directional?

A: All of XINPOMING's RF switches are bi-directional unless noted differently on the specification sheet.

Q: I need a custom RF switch designed. How much are your typical NREs (non-recurring engineering charges)?

A: XINPOMING does not charge NREs. Please send your custom requirement to us for details communication.

Q: Are your 18GHz electro-mechanical switches available with indicators or as latching?

A: Typical options: latching, self-terminating, indicators, TTL, RoHS and non-RoHS.
