Supports 3D Video TV Wall Video Switcher AV Matrix 8 X 8 HDMI LCD LED TV 9X9 Switch Matrix Switcher 8X8

Discover our high-quality 3D Video TV Wall Video Switcher AV Matrix 8X8 HDMI LCD LED TV 9X9 Switch Matrix Switcher 8X8. Factory direct prices, superior performance.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Details
  • Specification
  • Company Profile
  • FAQ
Overview

Basic Info.

Model NO.
BIT-Ma-ADI-0909
Resolution
4kx2K@30Hz
Keyword
Video Wall Controller
Certifications
CE FCC RoHS
Control Method
RS-232, TCP / IP,IR
Input
8 Channels for Full Digital HDMI Signal
Output
8 Channels for Full Digital HDMI Signal
HDMI Version
HDMI 1.4 with 3D TV
Digital Content Protection
Compatible with Hdcp 1.4
Input Line Length
Built-in Equalizer at Input up to 30 Meters
Output Line Length
Less Than 15 Meters
Warranty
1 Year Free Warranty
Product Keywords 1
HDMI Matrix
Product Keywords 2
HDMI Matrix 4X4
Product Keywords 3
Matrix HDMI 8X8
Product Keywords 4
Matrix HDMI 9X9
Transport Package
Air Transport
Specification
53x47x13
Trademark
Bitvisus
Origin
Shenzhen
Production Capacity
200 Pieces Per Day

Product Description



Product Description

Supports 3D Video TV Wall Video Switcher AV Matrix 8 X 8 HDMI LCD LED TV 9X9 Switch Matrix Switcher 8X8Supports 3D Video TV Wall Video Switcher AV Matrix 8 X 8 HDMI LCD LED TV 9X9 Switch Matrix Switcher 8X8Supports 3D Video TV Wall Video Switcher AV Matrix 8 X 8 HDMI LCD LED TV 9X9 Switch Matrix Switcher 8X8Supports 3D Video TV Wall Video Switcher AV Matrix 8 X 8 HDMI LCD LED TV 9X9 Switch Matrix Switcher 8X8Supports 3D Video TV Wall Video Switcher AV Matrix 8 X 8 HDMI LCD LED TV 9X9 Switch Matrix Switcher 8X8Supports 3D Video TV Wall Video Switcher AV Matrix 8 X 8 HDMI LCD LED TV 9X9 Switch Matrix Switcher 8X8Supports 3D Video TV Wall Video Switcher AV Matrix 8 X 8 HDMI LCD LED TV 9X9 Switch Matrix Switcher 8X8


Product Details

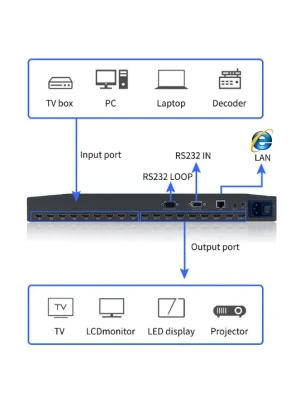

1,Support 9HDMI video inputs and cross switching of9 HDMI video outputs.
2,Support the highest resolution 4K x 2K,support 3D video.
3,The front panel LCD shows the real-time feedback status. If there is no operation for a long time,the display automatically enters the sleep low power state.
4,Supports HDMI 1.4 protocol, HDCP1.4 protocol, and 3D TV, compatible with DVT 1.0 protocol.
5,Multiple control methods: keypad operation, RS-232, TCP / IP.
6,Flexible EDID reading mechanism to solve various connection compatibility issues.
7,Integrated multiple control protocols, convenient and quick to use with various central control equipment.
8,Product firmware can be upgraded on-site through the network port, which can easily provide remote support on site and customization of special functions for users.
9,Built-in equalizer up to 100 feetat input and 50 feetat output.

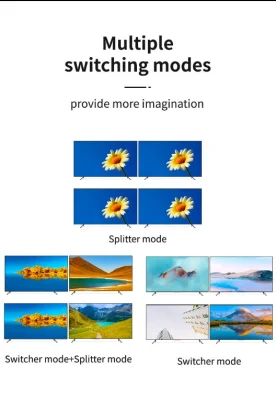

10,Powerful storage function, can store and recall multiple pre-stored switching modes; has power-down memory function, with power-off site protection function.
11, Standard 1U industrial chassis, easy installation, fast operation, support 7X12 hours of uninterrupted work, support AC power in the range of 90-264V.

Specification
model
BIT-Ma-ADI-0909
Specification
Input / output support 9 channels each
Input signal
Full digital HDMI signal
Output signal
Full digital HDMI signal
Control method
RS-232,TCP/IP
Support resolution
The highest resolution can reach 4k x 2k (4096 × 2160)
HDMI version
HDMI 1.4 with 3D TV support
Digital content protection
Compatible with HDCP 1.4
Hot plug
Plug and play, easy to install, support hot plug
Input line length
Built-in equalizer at input up to 100 feet
Output line length
≤50 feet
Input / Output interface type
HDMI Interface Type A 19-pin Female
External power
110~220 VAC
Working environment
Storage and use temperature: -20 ° ~ + 70 ° C
humidity: 10% ~ 90%
Product weight
4KG
Rated power
22W
Chassis size (WxDxH)
1U(440mm x 263mm x 44mm)
Warranty
1 year free warranty and lifetime maintenance
Company Profile

Supports 3D Video TV Wall Video Switcher AV Matrix 8 X 8 HDMI LCD LED TV 9X9 Switch Matrix Switcher 8X8Supports 3D Video TV Wall Video Switcher AV Matrix 8 X 8 HDMI LCD LED TV 9X9 Switch Matrix Switcher 8X8Supports 3D Video TV Wall Video Switcher AV Matrix 8 X 8 HDMI LCD LED TV 9X9 Switch Matrix Switcher 8X8Supports 3D Video TV Wall Video Switcher AV Matrix 8 X 8 HDMI LCD LED TV 9X9 Switch Matrix Switcher 8X8Supports 3D Video TV Wall Video Switcher AV Matrix 8 X 8 HDMI LCD LED TV 9X9 Switch Matrix Switcher 8X8


FAQ

1. who are we?
We are based in Guangdong, China, start from 2018,sell to North America(30.00%),Domestic Market(30.00%),Southeast Asia(20.00%),Mid East(10.00%),Northern Europe(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
TV Video Wall Controller,HDMI Extender,HDMI Matrix Switcher,Multi Viewer,HDMI Fiber Cable

4. why should you buy from us not from other suppliers?
Bitvisus has a strong R&D team,with more than 10 experienced engineers working here.Most of the core backbones come from leading companies in the industry such as Huawei,ZTE,Xilinx,etc.With more than 15 years of rich experience in the audio&video industry.

5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,FCA,DDP,Express Delivery,DAF;
Accepted Payment Currency:USD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,French,Russian,Korean
