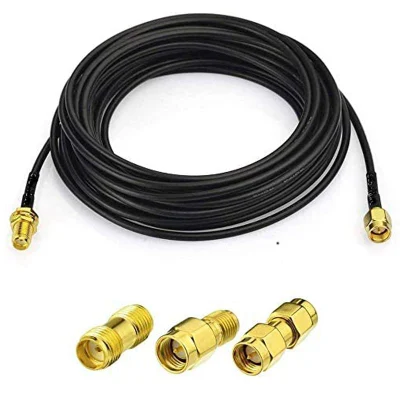

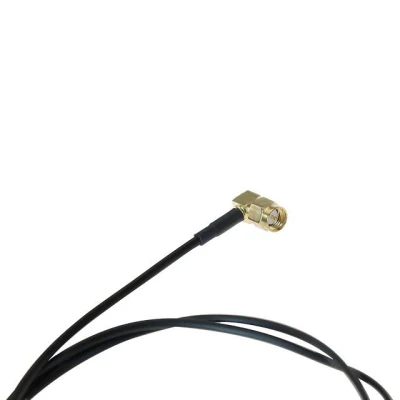

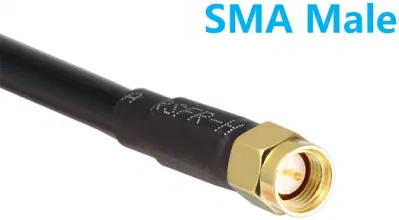

with Pigtail RF Extension Cable for Antennas Low Loss Coaxial Rg58 N Type Male to SMA Male 3m Rg Series, Low Loss Cable RF Device

Get reliable and efficient RF signal transmission with our Pigtail RF Extension Cable for Antennas. As a factory, we ensure low loss and high quality.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
RG58 cable assembly
Structure of Inner Conductor
1/0.90mm
Material of Insulation
Solid PE
Diameter of Insulation
2.95mm
Material of Braiding(Shielding)
CCA, Bare Copper, Tinned Copper
Structure of Braiding(Shielding)
96*0.12mm
Material of Jacket
PVC
Diameter of Jacket
5.0mm
Working Temp
-40ºC/80ºC
Impedance
50Ω±2
Voltage
1900V
Weight
40kg/Km
Transport Package
100PCS/CTN
Specification
57.5*29*26cm
Trademark
ELESUN
Origin
China
HS Code
8544200000
Production Capacity
5000PCS/Day

Product Description

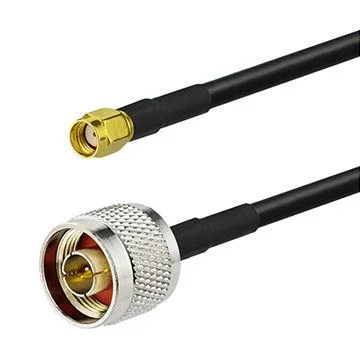

With Pigtail Rf Extension Cable for Antennas Low Loss Coaxial RG58 N Type Male to Sma Male 3M RG Series,low Loss Cable RF Device


Description:
. Standard Mil-c-17
. Equivalent to :SYV-50-3(GB Standard)
. Insulation Material: Solid PE
. Impedance:50Ω±2
. Color: Black, White

Typical Application:Transmission of data signals in applications such as antenna feed cables or Ethernet backbones, it is often used for low-power signal and RF connections.

Best Feature:
RG-58/U cable has a characteristic impedance of 50Ω. "RG" was originally a unit indicator for bulk RF cable in the U.S. military's Joint Electronics Type Designation System. The material of conductor is usually bare copper, the shielding is braided Bare Copper wire or Tinned Copper (70% to 95% coverage)
The outside diameter of RG-58 is around 5mm. RG58/U weighs around 40g/m, exhibits approximately 82pF/m capacitance. The maximum voltage is 300 V. RG-58 cable has a solid center conductor. The RG-58A/U features a flexible 7 or 19 strand center conductor.

Custom Service:
RG58 coax cable is often combined with BNC connectors and N connectors,please contact with us for free sample of RG58 coaxial cable assembly.


RG58/U coaxial cable specifications
Material of Inner Conductor Bare Copper
Structure of Inner Conductor 1/0.90mm
Material of Insulation Solid PE
Diameter of Insulation 2.95mm
Material of Braiding(Shielding) CCA, Bare Copper, Tinned Copper
Structure of Braiding(Shielding) 96*0.12mm
Material of Jacket PVC
Diameter of Jacket 5.0mm
Working temp -40ºC/80ºC
Impedance 50Ω±2
Voltage 1900V
Weight 40KG/KM
