Basic Info.
Model NO.
RG6-5
Wire Core Material
Bc/CCS/CCA/Tc/Cu/Ccag
Certification
ISO9001
Brand
Huang Shi
Delivery Time
10-25 Days
Fpe
4.5-4.8mm
Shielding
Aluminum Foil
Braiding
16/26/32/48/64/96/128
Transport Package
Woven Bag/ Carton
Specification
Rolls
Trademark
HUANG SHI
Origin
China
HS Code
8544200000
Production Capacity
10000PCS/Day
Product Description
Product Description
Coaxial Cable RG6(CCTV cable)
Cable Features&Advantages:
1) High physical foaming
2) Low loss in attenuation
3) OPTION: Dual /Quad Shield /Messenger /Quad Shield And Messenger

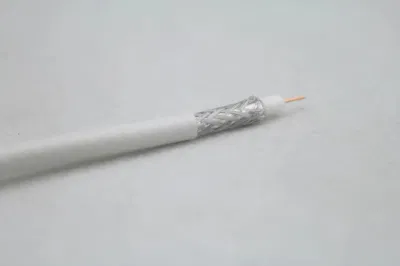

RG6 Coaxial Cable
Application:
Drop cable for CATV and MATV distribution
Cable Features&Advantages:
1) High physical foaming
2) Low loss in attenuation
3) OPTION: Dual /Quad Shield /Messenger /Quad Shield And Messenger
RG6 Coaxial Cable
Application:
Drop cable for CATV and MATV distribution
Product Parameter:
Specification for RG6 (CCTV Cable)
1) Copper clad steel conductor
2) Dielectric: Gas expanded polyethylene
3) Shield: Aluminum foil and aluminum magnesium braided wire
4) PVC Jacket
Rg6 cable,OD 7.0mm 1.02mm CCS braiding 128*0.12 Al--Mg pvc
5M/Roll
| Item.(n) | Structure(mm) | Insulation dia.(mm) | Braid coverage(%) | Approx overall dia.(mm) |
| RG58 | 19/0.18 | 2.95 | - | 4.95 |
| RG59 | 1/0.81 | 3.70 | 20-90% | 5.8-6.1 |
| RG59message | 1/0.81+1/1.30 | 3.70 | 20-90% | 5.8-6.1 |
| RG6 | 0.8/0.9/1/1.02 | 4.6-4.8 | 20-90% | 6.4-7.0 |
| RG6message | 1/1.02+1/1.30 | 4.6-4.8 | 20-90% | 6.4-7.0 |
Specification for RG6 (CCTV Cable)
1) Copper clad steel conductor
2) Dielectric: Gas expanded polyethylene
3) Shield: Aluminum foil and aluminum magnesium braided wire
4) PVC Jacket
Rg6 cable,OD 7.0mm 1.02mm CCS braiding 128*0.12 Al--Mg pvc
5M/Roll
