Product Description

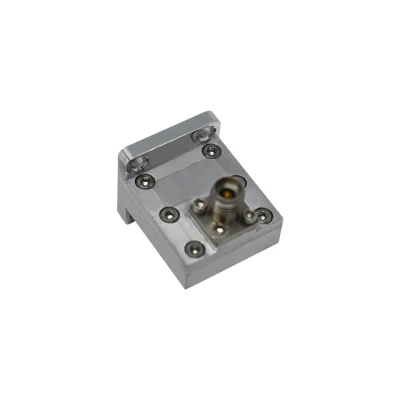

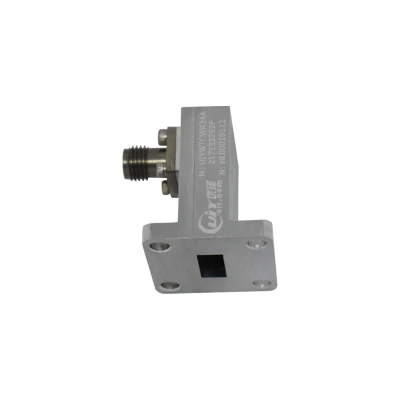

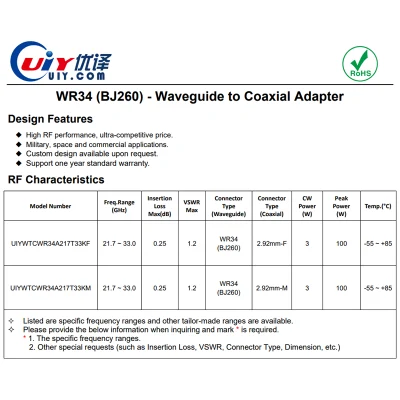

| Description | WR34 21.7-33GHz Ka Band Waveguide to Coaxial Adapter with Right Angle |
| Model Number | UIYWTCWR34A217T33KF |
| Freq.Range | 21.7 ~ 33.0GHz |
| Insertion Loss Max | 0.25dB |
| VSWR Max | 1.2 |
| Connector Type (Waveguide) | WR34 (BJ260) |
| Connector Type (Coaxial) | 2.92mm-F |
| CW Power | 3W |
| Peak Power | 100W |

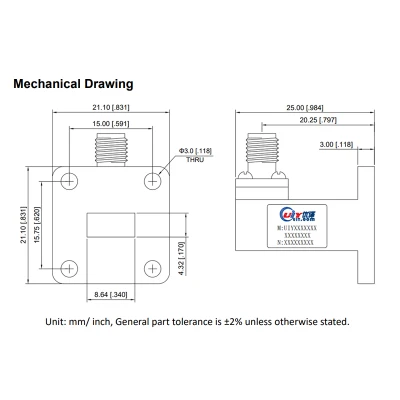

| Size | 21.1 x 21.1 x 25mm |
| Temp | -55 ~ +85°C |
| Warranty | one year |
| Certificates | RoHS, REACH, ISO9001, ISO14001 |
Since 2003, UIY Inc. has become a critical supplier and partner to major companies serving the Aerospace, Radar, Defense, Medical, Communications and Specialty Test industries.
UIY's product offerings include:
RF Isolator, RF Circulator
Coaxial Termination, Coaxial Attenuator
RF Filters, Duplexer, Triplexer
Power Divider/Splitter, RF Combiner/Hybrid Coupler
Directional Coupler
TX RX Combiner/Splitter/Multi coupler
Waveguide to Coaxial Adapter, etc.
We offer cost-effective customized solutions in a wide range of RF and Microwave Components and Subsystems.
Advantages:
we offer - ROHS Compliant
we offer - HFSS Simulation
we guarantee - One Year warranty
we guarantee - Fast Delivery
we support - OEM & Contract Manufacturing
Q. Are you a factory or trading company?
A: We are a factory and we have over 20 years of experience focusing on manufacturing .We can give you competitive price and professional service.
Q. Do you have any certificates?
A: Yes, we have ISO, REACH, RoHS certificates.
Q. Would you make custom products?
A: Yes, we offer customized service per your requirements.
Q. What about lead time for sample and production?
A: It's about 2 weeks for new design sample and 1~4 weeks for production. It depends on the order quantity.
Q. What is the Terms of Payment?
A: T/T, Paypal, Alipay
Q. How long is the warranty ?
A: One year
