WR22 33~50GHz U Band Waveguide to Coaxial Adapter

Our factory specializes in manufacturing high-quality WR22 33~50GHz U Band Waveguide to Coaxial Adapters. Find the best deals on reliable and durable adapters.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Custom Design
  • Certifications
  • Packaging & Shipping
  • Company Profile
  • Our Advantages
  • FAQ
Overview

Basic Info.

Model NO.
UIYWTCWR22A33T5024F
CW Power
3W
Peak Power
100W
Connector Type (Waveguide)
WR22 (BJ400)
Connector Type
2.4mm-Female
Temp.
-55~+85 centigrade
Warranty
one year
Certificates
RoHS, REACH, ISO9001, ISO14001
Transport Package
Uiy Standard Carton for Standard Export Package Do
Specification
metal
Trademark
UIY
Origin
Shenzhen
HS Code
8517799000
Production Capacity
80000pieces/Year

Packaging & Delivery

Package Size
31.00cm * 23.00cm * 6.00cm
Package Gross Weight
1.000kg

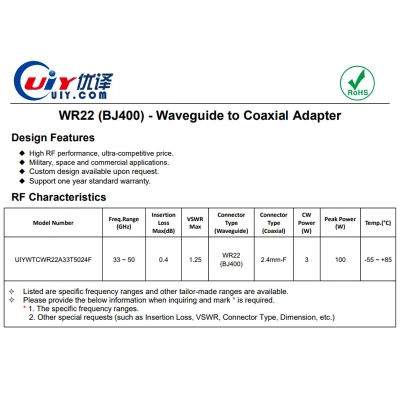

Product Description


Quick Details
Product Description
Model NO. UIYWTCWR22A33T5024F
Type WR22 33~50GHz U Band Waveguide to Coaxial Adapter for Satellite
with 2.4mm-Female Connector Right Angle 90°
Brand Name UIY
Freq. Range 33 ~ 50GHz
Insertion Loss Max 0.4dB
VSWR Max 1.25
CW Power 3W
Peak Power 100W
Connector Type 2.4mm-Female
Temperature -55 ~ +85ºC
Certification RoHS, REACH, ISO9001, ISO14001
Warranty one year

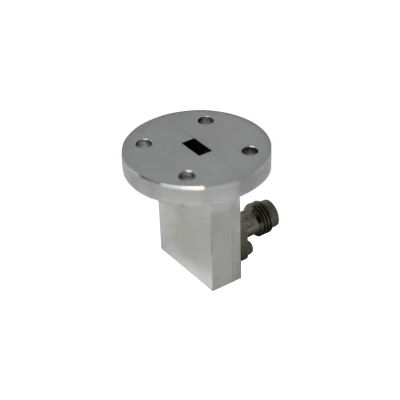

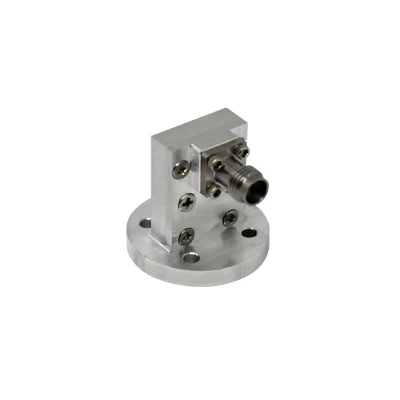

Detailed Photos
WR22 33~50GHz U Band Waveguide to Coaxial Adapter
WR22 33~50GHz U Band Waveguide to Coaxial Adapter WR22 33~50GHz U Band Waveguide to Coaxial Adapter



Custom Design
Applications:


Radar System

Satellite


Telecom Infrastructure

Microwave Radio Systems

Communication Systems

Wireless Radio Systems

Aerospace

Public Address System Radio Transmitter

Biomedical Instrumentation

Mobile Communciations
WR22 33~50GHz U Band Waveguide to Coaxial Adapter


UIY Waveguide to Coaxial Adapter Custom Design available:


Operating Frequency : 320 MHz to 112GHz.

Geometry : Right Angle / End Launch

Connector Type (Waveguide Size) : optional WR10 - WR2300.( 'WR' means rectangular, and the number represents the size in inches.)

Connector Type (Coaxial) : optional SMA, N, 2.92mm , 2.4mm , 1.85mm , 1.0mm , 4.3-10 and 7/16 DIN with female, jack, male, male to female and plug genders.

CW Power : Offered 3 Watts, 50 Watts, 100watts, 300watts and Peak Power 3000 Watts model.

UIY Inc.provide Low insertion loss, high isolation, high power handling on RF Module. Exceptional customer service and technical support are on hand to support our customers.

Certifications

WR22 33~50GHz U Band Waveguide to Coaxial Adapter

Packaging & Shipping

WR22 33~50GHz U Band Waveguide to Coaxial AdapterWR22 33~50GHz U Band Waveguide to Coaxial Adapter

Company Profile
WR22 33~50GHz U Band Waveguide to Coaxial Adapter



Our Advantages

WR22 33~50GHz U Band Waveguide to Coaxial Adapter


______________________________________________________________________________________________________________________
FAQ



1. Question: when can I get the price?
We usually quote within 24 hours after confirming the detailed requirements. If the situation is similar, we can quote
immediately.

2. Question: what is the minimum order quantity?
Minimum order 1 piece.

3. Question: when will the goods be delivered?
The delivery time is usually about 7 - 14 days after ordering.

4. Question: do you only have this product?
No, we can do other products, just need you to give the specific requirements of products and data or templates.

5. Question: what is the quality and quantity of your products?
We have international common materials and different material products, and you can choose according to your needs.

6. Question: why do you choose us?
We focus on Manufacturer RF Microwave Components & Export for 20 years, so we have the advantage of technology and quality, as well as pretty competitive price.
The products are in full compliance with RoHS, ISO9001 and ISO14001 international standard, with high-precision testing equipment and QC team, and we have established a strict quality control system. We are committed to providing our customers with high-quality products for a long time.
