WR75 9.85~15GHz Waveguide to Coaxial Adapter with End Launch 180degree

Get top-quality WR75 9.85~15GHz Waveguide to Coaxial Adapter with End Launch 180degree directly from the factory. High-performance, durable and reliable.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Custom Design
  • Certifications
  • Packaging & Shipping
  • Company Profile
  • Our Advantages
  • FAQ
Overview

Basic Info.

Model NO.
UIYWTCWR75E984T15SF
CW Power
50W
Peak Power
1000W
Connector Type (Waveguide)
WR75 (BJ120)
Connector Type
SMA-Female
Temp.
-55~+85 centigrade
Warranty
one year
Certificates
RoHS, REACH, ISO9001, ISO14001
Transport Package
Uiy Standard Carton for Standard Export Package Do
Specification
38.1*38.1*38mm
Trademark
UIY
Origin
Shenzhen
HS Code
8517799000
Production Capacity
80000pieces/Year

Packaging & Delivery

Package Size
25.00cm * 19.00cm * 9.00cm
Package Gross Weight
0.500kg

Product Description

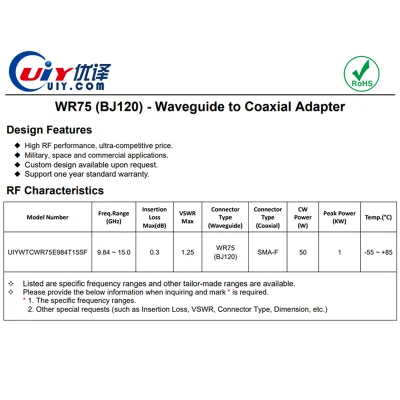

Quick Details
Product Description
Model NO. UIYWTCWR75E
Type WR75 (BJ120) - Waveguide to Coaxial Adapter
with End Launch 180degree
Brand Name UIY
Freq. Range 9.84 ~ 15.0GHz
Insertion Loss Max 0.3dB
VSWR Max 1.25
CW Power 50W
Peak Power 1000W
Connector Type SMA-Female
Temperature  -55 ~ +85ºC
Dimension 38.1*38.1*38mm
Certification IOS9001,IOS14001,RoHS
Warranty one year

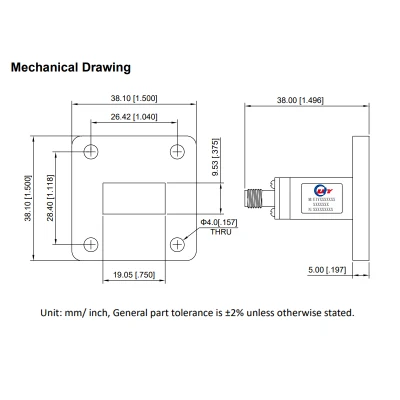

Detailed Photos

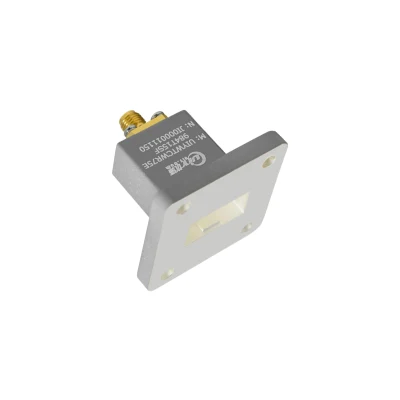

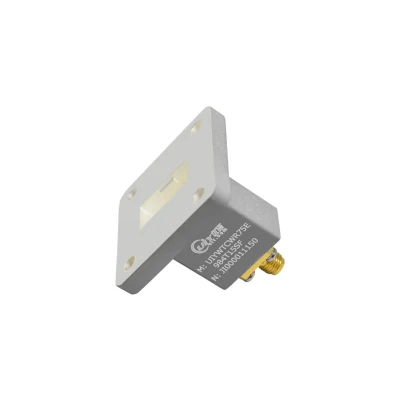

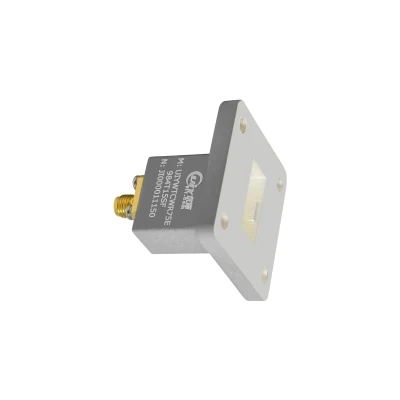

WR75 9.85~15GHz Waveguide to Coaxial Adapter with End Launch 180degreeWR75 9.85~15GHz Waveguide to Coaxial Adapter with End Launch 180degreeWR75 9.85~15GHz Waveguide to Coaxial Adapter with End Launch 180degree

Custom Design
Applications:


Radar System

Satellite


Telecom Infrastructure

Microwave Radio Systems

Communication Systems

Wireless Radio Systems

Aerospace

Public Address System Radio Transmitter

Biomedical Instrumentation

Mobile Communciations
WR75 9.85~15GHz Waveguide to Coaxial Adapter with End Launch 180degree


UIY Waveguide to Coaxial Adapter Custom Design available:


Operating Frequency : 320 MHz to 112GHz.

Geometry : Right Angle / End Launch

Connector Type (Waveguide Size) : optional WR10 - WR2300.( 'WR' means rectangular, and the number represents the size in inches.)

Connector Type (Coaxial) : optional SMA, N, 2.92mm , 2.4mm , 1.85mm , 1.0mm , 4.3-10 and 7/16 DIN with female, jack, male, male to female and plug genders.

CW Power : Offered 3 Watts, 50 Watts, 100watts, 300watts and Peak Power 3000 Watts model.

UIY Inc.provide Low insertion loss, high isolation, high power handling on RF Module. Exceptional customer service and technical support are on hand to support our customers.
